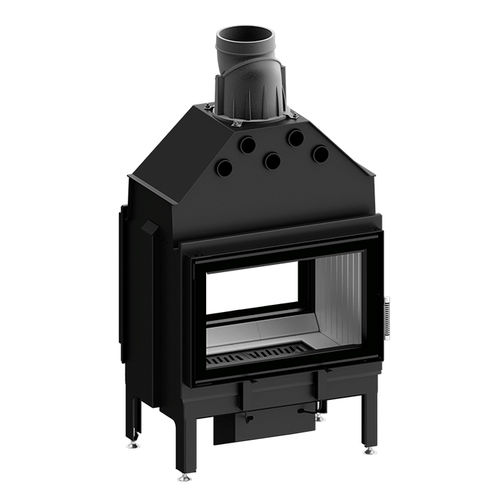

Wood-burning fireplace ARDENTE DUO 68x43.DSS

islandcontemporaryclosed hearth

◘Deepened combustion chamber. ◘A new type of guillotine and service access. ◘Increased mass for more heat accumulation. FEATURES Energy class - A Ecodesign - + BlmSchV II - + Nominal power (kW) - 12 Heating load range (kW) - 6-15,5 Thermal efficiency (%) - 77 Dust emission [g/m³] - 0,034 Possibility to install the fireplace inserts with warm accumulative casing - YES CO emission by13% O2 (g/m³) - 0,856 Weight (kg) - 242 Flue diameter (mm) - 200 Air intake diameter (mm) - 125 Glass dimensions (mm) - 680 x 430 Min. active field of outlet vents (cm²) - 840-960 Min. active field of inlet vents (cm²) - 480-780 Tunnel type insert for two-sided or island casings. Cartridge with enlarged, deep rectangular combustion chamber giving the possibility of large loads. Hinged cast iron grate for the convenience of cleaning the hearth. A new type of guillotine with service access. Two heat-resistant decorative DECOR windows as standard: working temperature up to 800 degrees. Possibility to order dedicated masking frames: powder coated steel in the color of the insert. Steel door made of a special profile that guarantees stiffness and high temperature durability. Clean glass system: double-sided air guides with air curtains. The elements of the cartridge are manufactured using modern CNC devices: laser 2D, 3D, press brakes. The insert coat made of P265GH grade boiler steel according to EN 10028-2. Meets BImSchV II and ECODESIGN standards. In accordance with the requirements of the Ecodesign Directive within the EU Member States: "This product can not be used as the primary source of heating".
