◘Deepened combustion chamber.
◘A new type of guillotine and service access.
◘Increased mass for more heat accumulation.
FEATURES
Energy class - A
Ecodesign - +
BlmSchV II - +
Nominal power (kW) - 20
Heating load range (kW) - 10-26
Thermal efficiency (%) - 78,0
Dust emission [g/m³] - 0,036
Possibility to install the fireplace inserts with warm accumulative casing - NO
CO emission by13% O2 (g/m³) - 0,508
Weight (kg) - 395
Flue diameter (mm) - 200
Air intake diameter (mm) - 125
Glass dimensions (mm) - 1050 x 430
Min. active field of outlet vents (cm²) - 1400-1600
Min. active field of inlet vents (cm²) - 800-1300

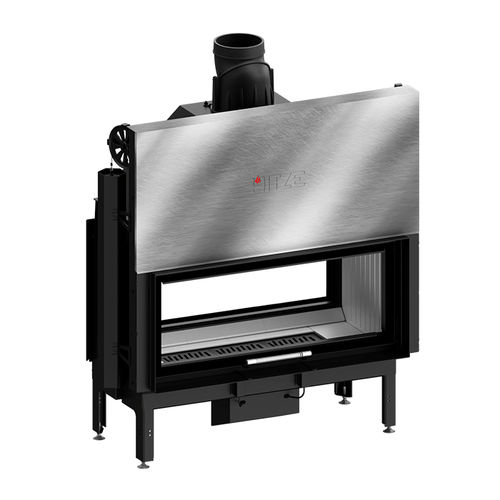

Tunnel type insert for two-sided or island casings.
Cartridge with enlarged, deep rectangular combustion chamber giving the possibility of large loads.
Hinged cast iron grate for the convenience of cleaning the hearth.
A new type of guillotine with service access.
Two heat-resistant decorative DECOR windows as standard: working temperature up to 800 degrees.
Possibility to order dedicated masking frames: powder coated steel in the color of the insert.
Steel door made of a special profile that guarantees stiffness and high temperature durability.
Clean glass system: double-sided air guides with air curtains.
The elements of the cartridge are manufactured using modern CNC devices: laser 2D, 3D, press brakes.
The insert coat made of P265GH grade boiler steel according to EN 10028-2.
Meets BImSchV II and ECODESIGN standards.
In accordance with the requirements of the Ecodesign Directive within the EU Member States: "This product can not be used as the primary source of heating".
