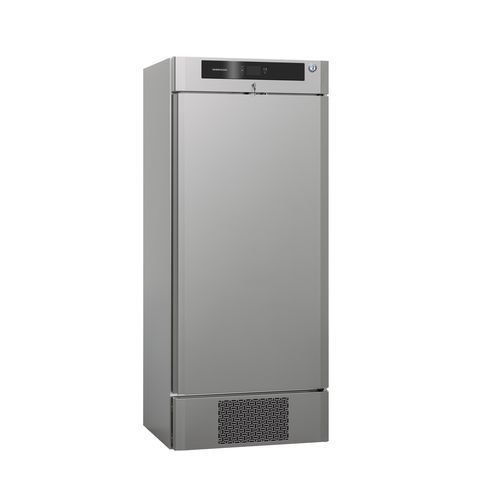

Professional freezer BAKER F 625 DR

for bakeryuprightbuilt-in

Overview
The Hoshizaki BAKER series pairs decades of refrigeration expertise with modern engineering to deliver cabinets tailored for bakery production and tray handling. The Baker F 625 DR is a professional freezer with a temperature range of -25/+12°C, a net usable volume of 319 l and external dimensions of 830 x 772 x 1964 mm.

Key features

• FOOD-SAFE STAINLESS STEEL: Interior and exterior in AISI 304 stainless steel for hygienic surfaces and easy cleaning in humid bakery environments.
• EFFICIENT SEALING: Wide magnetic, removable gaskets with a triple insulation area limit cold-air loss and maintain temperature stability.
• UNIFORM AIR CIRCULATION: Full‑length air duct ensures even temperature distribution across all tray positions.
• CONTROL & SAFETY: BAKER control unit with alarms and emergency programs for operational safety and process reliability in production settings.

Documentation and accessories summary
Technical datasheet, declaration of conformity, energy label and instruction manual are available in the product documentation section. Standard accessories: 25 sets of adjustable bakery tray supports (60 x 40 cm). Optional accessories: additional shelves and rollers for tray handling configurations.

Technical specifications

• Item number: 143620010
• Model name: Baker F 625 DR
• Brand: Hoshizaki
• Warranty period: 6 Years on Parts & Labour - based on country agreement
• Country of origin: Turkey
• Accessories included: 25 sets of bakery tray supports
• Title: Freezer
• Equipped with: Right hand hinged reversible door with lock; 25 pairs of adjustable tray supports (600 x 400 mm); LED lighting
• Width: 830 mm
• Width (packed): 920 mm
• Depth: 772 mm
• Depth (packed): 870 mm
• Height: 1964 mm
• Height (packed): 2190 mm
• Volume (packed): 1.75 m³
• Energy consumption: 1965 kWh/year
• Energy efficiency class: D
• Energy efficiency class standard: ISO 22041: 2019
• Energy Efficiency Index (EEI): 64.56 EEI
• Bakery tray insertion: Transverse insertion
• Bakery tray size (mm): 600 x 400
• Maximum number of trays: 50
• Pairs of adjustable supports for baking trays: 25
• Climate class: 5 (max. ambient 40°C w/ 40% RH)
• Connection load: 620 W
• Exterior: Stainless steel AISI 304
• Interior: Stainless steel AISI 304
• Gross weight: 156 kg
• Net weight: 141 kg
• Insulation thickness: 80 mm
• Insulation type: Polyurethane
• Net usable volume: 319 l
• Power supply: 230V, 50Hz
• Temperature range: -25/+12°C
• Volume, gross: 610 l
• Cooling system: Built-in cooling system
• Refrigeration capacity: 608
• CO2 equivalent: 0.375 kg
• GWP: 3 GWP
• Refrigerant: 0.125 kg
• Refrigerant type: R290
• SKU: 143620010
