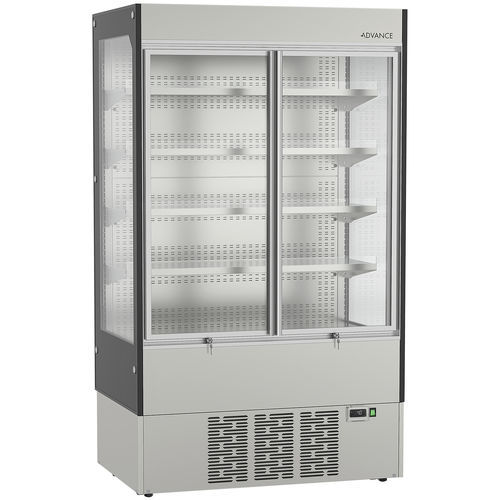

Upright refrigerated display case ADVANCE MD K 120 BG KG E

shelffor shopstainless steel

Product overview
The ADVANCE MD K 120 BG KG E is a multideck refrigerator with glass doors and black and clear glass end panels offering a net usable volume of 530 l. The unit features an intelligent airflow system for uniform cooling across all shelves, high-quality polyurethane insulation and an R290 eco-friendly refrigerant for reduced energy consumption. Dimensions (W x D x H): 1170 x 750 x 2000 mm.

Key features

• Clear visibility via bright LED lighting on every shelf
• Designed for heavy loads: integrated levelling, supplied with wheels and levelling feet
• Adjustable shelves that can be angled or repositioned
• Easy cleaning and hygiene: interior with rounded corners and smooth surfaces
• Energy efficiency options: closed-door variants and night blinds to reduce consumption

Equipped with

• Glass doors
• 4 stainless steel shelves
• LED lighting for each shelf
• Night blind
• 4 levelling feet and wheels

Specifications
Item number: 201123170
Model name: ADVANCE MD K 120 BG KG E
Brand: Advance
Warranty period: 2 Years on Parts & Labour (country dependent)
Country of origin: Turkey
Accessories included: 4 stainless shelves
Title: Multideck refrigerator with Glass Doors and Black and Clear Glass End Panels
Width: 1170 mm (packed width: 1300 mm)
Depth: 750 mm (packed depth: 1000 mm)
Height: 2000 mm (packed height: 2150 mm)
Volume (packed): 2.8 m3
Net usable volume: 530 l
Volume, gross: 730 l
Energy consumption: 1822 kWh/year
Energy efficiency class: B (standard: ISO 23953-1/2:2023)
Energy Efficiency Index (EEI): 12.54 EEI
Number of shelves: 4 (maximum 4)
Shelf size: W 1125 x D 375 mm
Maximum shelf distance: 350 mm
Maximum shelf load: 80 kg
Maximum shelf can load (can H120 mm x Ø66 mm): 80 Pc
Maximum bottom tray can load (can H120 mm x Ø66 mm): 105 Pc
Temperature (Class 3M1 / 3M2): -1/+5°C (Class 3M1)
Cover type / Door Type: Glass door
Climate class: 3 (max ambient 25 °C with 60% RH)
Connection load: 405 W
Cooling system: Built-in cooling system
Refrigeration capacity: 612
Refrigerant type: R290 (0.149 kg); CO2 equivalent: 0.447 kg; GWP: 3
Exterior: Stainless steel AISI 304
Interior: Stainless steel AISI 304
Gross weight: 325 kg
Net weight: 280 kg
Insulation type: Polyurethane
Legs / Castors: Feet 34-52 mm
SKU: 201123170

Technical specifications

• Model: ADVANCE MD K 120 BG KG E
• Net usable volume: 530 l
• Dimensions (W x D x H): 1170 x 750 x 2000 mm
• Energy class: B; Energy consumption: 1822 kWh/year; EEI: 12.54
• Temperature range: -1 to +5 °C (Class 3M1)
• Refrigerant: R290 (0.149 kg); CO2 eq: 0.447 kg; GWP: 3
• Exterior / Interior: Stainless steel AISI 304
• Shelves: 4 stainless shelves included; shelf size W1125 x D375 mm; max shelf load 80 kg
• Features: glass doors, LED shelf lighting, night blind, adjustable shelves, wheels and levelling feet
• Power supply: 230V, 50 Hz; connection load 405 W
• Gross weight: 325 kg; Net weight: 280 kg
• Country of origin: Turkey
• Warranty: 2 years on parts & labour (country dependent)
