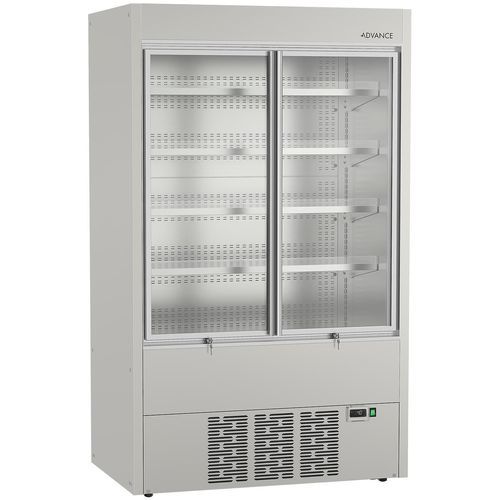

Upright refrigerated display case ADVANCE MD K 120 SW KG E

shelffor shopfor commercial kitchen

Overview
The ADVANCE MD K 120 SW KG E is a multideck refrigerator with glass doors and solid end panels offering a net usable volume of 530 L. It uses an intelligent airflow system for stable, uniform cooling across all shelves and an R290 refrigerant charge to lower environmental impact and energy use.

Dimensions
Dimensions (W × D × H): 1200 × 750 × 2000 mm

Key features

• Shelf lighting: dedicated LED lighting on each shelf for uniform product illumination.
• Mobility & levelling: supplied with 4 wheels and adjustable levelling feet for stable installation on variable floors.
• Adjustable display: shelves can be angled or repositioned to adapt to changing product assortments.
• Hygienic interior: rounded corners and smooth stainless-steel surfaces simplify cleaning and reduce dirt retention.
• Energy management: closed-door variants improve efficiency; night blind for open models can reduce energy use by up to 28% during non-service periods.

Equipment

• Glass doors
• 4 stainless-steel shelves
• LED lighting per shelf
• Night blind
• 4 levelling feet and wheels

Specifications
Item number / SKU: 221123170
Model: ADVANCE MD K 120 SW KG E
Brand: Advance
Net usable volume: 530 L
Gross volume: 730 L
Dimensions W × D × H: 1200 × 750 × 2000 mm
Packed dimensions W × D × H: 1300 × 1000 × 2150 mm
Energy consumption: 1822 kWh/year — Energy class: B (ISO 23953-1/2:2023) — EEI: 19.02
Refrigerant: R290 — Amount: 0.149 kg — GWP: 3 — CO2 equivalent: 0.447 kg
Power supply: 230 V, 50 Hz — Connection load: 405 W
Temperature range (Class 3M1): -1 / +5 °C
Exterior / Interior: Stainless steel AISI 304
Insulation: Polyurethane
Number of shelves: 4 — Shelf size: W 1125 × D 375 mm — Max shelf load: 80 kg
Climate class: 3 (max ambient 25 °C, 60% RH)
Net weight / Gross weight: 265 kg / 310 kg

Documentation available
Declaration of conformity (PDF), Ecodesign / Energy label (PDF), Instruction manual (PDF)

Accessories

• Snack basket 1200 (Item number 760660970)
• Food tray slide 1200 (Item number 760660973)
• Price strip 1200 (Item number 760660977)

Technical specifications

• Model: ADVANCE MD K 120 SW KG E
• Brand: Advance
• Item number / SKU: 221123170
• Net usable volume: 530 L — Gross volume: 730 L
• Dimensions: W 1200 × D 750 × H 2000 mm — Packed: W 1300 × D 1000 × H 2150 mm
• Energy: 1822 kWh/year — Class B (ISO 23953-1/2:2023) — EEI 19.02
• Refrigerant: R290 (0.149 kg) — GWP 3 — CO2e 0.447 kg
• Electrical: 230 V, 50 Hz — Connection load 405 W
• Temperature class: 3M1 (-1 / +5 °C)
• Construction: Exterior/interior AISI 304 stainless steel — Insulation: polyurethane
• Shelves: 4 stainless shelves — Size W1125 × D375 mm — Max load 80 kg — Max shelf spacing 350 mm
• Capacity examples: max shelf can load 80 pcs (H120 × Ø66 mm) — max bottom tray can load 105 pcs
• Climate class: 3 (max 25 °C, 60% RH)
• Includes: LED per shelf, night blind, levelling feet and wheels
• Warranty: 2 years on parts & labour (country agreement)
