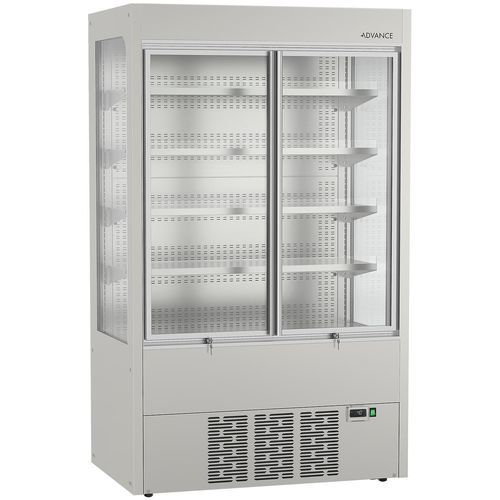

Upright refrigerated display case ADVANCE MD K 120 HG KG E

for shopstainless steelwith door

ADVANCE MULTIDECKS
The ADVANCE MD K 120 HG KG E is a multideck refrigerator with glass doors and clear glass end panels with a net usable volume of 530 l. The Multideck series features an intelligent airflow system that ensures stable and uniform cooling across all shelves, from top to bottom. High-quality insulation and eco-friendly refrigerants help reduce energy consumption and operational costs, supporting a more sustainable business. The dimensions (W x D x H) are 1200 x 750 x 2000 mm.

Key features

• Clear visibility that drives sales: bright LED lighting on every shelf for uniform illumination of products.
• Built for heavy loads: integrated levelling, supplied with 4 wheels and levelling feet for stability and positioning on any surface.
• Easy operation & maintenance: adjustable shelves that can be angled or repositioned to match changing product ranges.
• Easy cleaning & hygiene: interior designed with rounded corners and smooth surfaces to reduce dirt accumulation and simplify cleaning.
• Energy efficiency: designed to balance performance and sustainability; closed-door variants and night blinds on open models can provide significant energy savings (night blinds closed 12 hours/day vs open 24 hours).

Documentation available

• Declaration of conformity (Declaration-of-Conformity_CE-Multideck-Glass-Doors.pdf)
• Ecodesign label / Energy label (ADVANCE MD K 120 HG KG E.pdf)
• Instruction manual (ADVANCE MD K USER MANUEL ALL LANGUAGE GLASS DOOR.pdf)

Technical specifications

• Item number: 211123170
• Model name: ADVANCE MD K 120 HG KG E
• Brand: Advance
• Warranty period: 2 Years on Parts & Labour - based on country agreement
• Country of origin: Turkey
• Accessories included: 4 stainless shelves
• Title: Multideck refrigerator with Glass Doors and Clear Glass End Panels
• Equipped with: Glass doors, 4 stainless shelves, LED lighting for each shelf, night blind, 4 levelling feet and wheels
• Width: 1200 mm
• Width (packed): 1300 mm
• Depth: 750 mm
• Depth (packed): 1000 mm
• Height: 2000 mm
• Height (packed): 2150 mm
• Volume (packed): 2.8 m³
• Energy consumption: 1822 kWh/year
• Energy efficiency class: B
• Energy efficiency class standard: ISO 23953-1/2:2023
• Energy Efficiency Index (EEI): 12.54 EEI
• Number of shelves: 4
• Maximum number of shelves: 4
• Shelf size: W 1125 x D 375 mm
• Temperature (Class: 3M1 / 3M2): -1/+5°C (Class 3M1)
• Cover type: Glass door
• Maximum shelf distance: 350 mm
• Maximum shelf load: 80 kg
• End panel type: End panel with clear glass
• Maximum shelf can load (can = H120 mm x Ø66 mm): 80 Pc
• Maximum bottom tray can load (can = H120 mm x Ø66 mm): 105 Pc
• Climate class: 3 (maximum ambient temperatures of 25 °C with 60% RH)
• Connection load: 405 W
• Exterior: Stainless steel AISI 304
• Interior: Stainless steel AISI 304
• Gross weight: 320 kg
• Net weight: 275 kg
• Insulation type: Polyurethane
• Legs / Castors: Feet 34-52 mm
• Net usable volume: 530 l
• Power supply: 230V, 50 Hz
• Volume, gross: 730 l
• Cooling system: Built-in cooling system
• Door Type: Glass door
• Refrigeration capacity: 612
• CO2 equivalent: 0.447 kg
• GWP: 3 GWP
• Refrigerant: 0.149 kg
• Refrigerant type: R290
• SKU: 211123170
