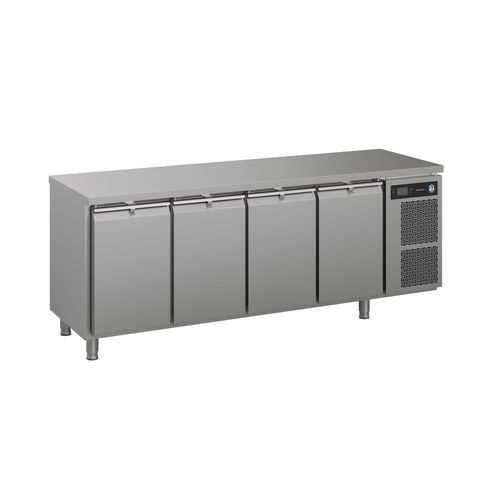

Commercial kitchen refrigerated counter PREMIER FL 4 A DL DL DL DR L E

4 doorswithout drawerfor frozen food

Product overview
The Hoshizaki Premier FL 4 A DL DL DL DR L E is a 4-section freezer counter (1/1 GN workstation) with a stainless steel worktop. It includes four door sections, each fitted with two grey shelves and a lock. The unit provides a net usable volume of 384 l and operates in the temperature range -25 to -5 °C, suitable for energy-efficient refrigerated storage in commercial kitchens.

Series description
The Hoshizaki PREMIER series consists of heavy-duty cabinets and counters engineered for energy-efficient refrigeration (Climate Class 4/5). Construction uses stainless steel AISI 304 for exterior and interior finishes, solid door hinges and a compartmentalized cooling unit designed for accessible maintenance.

Key features

• TEMPERATURE STABILITY - Rapid recovery of internal temperature after door openings and defrosting.
• SEAMLESS KITCHEN DESIGN - Front ventilation enables installation without airflow clearance under, at the sides or at the back.
• EASY MAINTENANCE - Extractable compartmentalized cooling unit simplifies servicing.
• HYGIENE & COOLING EFFICIENCY - Wide removable magnetic gaskets and triple-insulation zones reduce cold air loss.
• ERGONOMIC FEATURES - Anti-tilt shelves, drawers with pull-out stops, extended drawer telescopic rails and full-length handles.
• MULTIPLE CONFIGURATIONS - Options for worktops, door/drawer arrangements, legs/castors/electric elevation, temperature ranges and accessories.
• ADDITIONAL OPTIONS - Soft-closing drawer (optional); alternate worktop and insulation boards; increased body height of 750 mm; castor extension kit to add 50 mm (optional).

Specifications (table)
Item number: 423001112100
Model name: Premier FL 4 A DL DL DL DR L E
Brand: Hoshizaki
Warranty: 6 Years on Parts & Labour (based on country agreement)
Country of origin: Turkey
Accessories included: 2 grey shelves per door section
Title: 4-Section Freezer Counter
Equipped with: Stainless steel worktop; 4 door sections each with 2 grey shelves and lock
Width: 2196 mm
Width (packed): 2226 mm
Depth: 700 mm
Depth (packed): 730 mm
Height: 754.2 mm
Height including legs (min): 884.2 mm
Height including legs (max): 934.2 mm
Height (packed): 1081 mm
Volume (packed): 1.7566 m³
Energy consumption: 2070 kWh/year
Energy efficiency class: C (ISO 22041:2019)
Energy Efficiency Index (EEI): 44.77
Number of shelves: 8 (2 per door section); Shelf size: 1/1 GN
Climate class: 4 (max ambient 30 °C / 55% RH)
Connection load: 425 W
Exterior / Interior: Stainless steel AISI 304
Gross weight: 184 kg
Net weight: 164 kg
Insulation: Polyurethane, 60 mm
Net usable volume: 384 l
Number of sections: 4
Power supply: 230 V, 50 Hz
Sound level: 45 dB
Temperature range: -25 to -5 °C
Gross volume: 625 l
Worktop options: Flat worktop A
Cooling system: Built-in cooling system
Refrigerant: R290 (0.055 kg); CO2 equivalent: 0.165 kg; GWP: 3

Technical specifications

• Item number / SKU: 423001112100
• Brand: Hoshizaki
• Commercial model name: Premier FL 4 A DL DL DL DR L E
• Type: 4-Section Freezer Counter (1/1 GN workstation)
• Equipped with: Stainless steel worktop; 4 door sections each with 2 grey shelves and lock
• Net usable volume: 384 l; Gross volume: 625 l
• Temperature range: -25 to -5 °C
• Dimensions (W x D x H): 2196 x 700 x 754.2 mm
• Packed dimensions (W x D x H): 2226 x 730 x 1081 mm
• Height including legs: 884.2–934.2 mm
• Number of sections: 4; Number of shelves: 8 (2 per door section); Shelf size: 1/1 GN
• Exterior / Interior finish: Stainless steel AISI 304
• Insulation: Polyurethane, 60 mm
• Energy consumption: 2070 kWh/year; Energy class: C; EEI: 44.77
• Climate class: 4 (max ambient 30 °C / 55% RH)
• Connection load: 425 W; Power supply: 230 V / 50 Hz; Sound level: 45 dB
• Refrigerant type: R290 (0.055 kg); CO2 equivalent: 0.165 kg; GWP: 3
• Net weight: 164 kg; Gross weight: 184 kg
• Warranty: 6 Years on Parts & Labour (based on country agreement)
