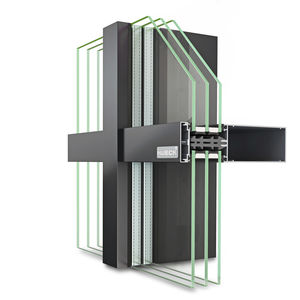

Glass facade system TRIGON UNIT L
aluminum

glass facade system
glass facade system
Add to favorites
Compare this product


Characteristics

Material
glass, aluminum

Description

Thermally insulated element construction -Elevation widths 33 mm, 50 mm and 75 mm -Thermal insulation Uf ≥ 0,93 W/m²K -Burglar resistance RC2 -Seismic resistance AAMA 501.4:2000 Construction: Thermally insulating aluminium facade design as a unit construction for vertical, polygonal curtain walls Optimised profile geometry with regard to weight and statics values Glass thickness between 2 and 50 mm Different insert elements from the HUECK system possible Elevation width: Frame and mullion profiles with an elevation width of 33 mm or 50 mm and 75 mm Profile depth: Frame profile with 137 mm, mullion profile depending on static requirements from 50 mm to 137 mm Gaskets: Internal sealing profiles available as vulcanised frames or as metre-length material Weather-independent, can be inserted on site without sealing material Test results: Uf ≥ 0.93 W/m2K Water tightness static: RE 1200 (BS-EN 12154 and CWCT section 6) Water tightness dynamic: 300 Pa / 900 Pa EN 13050 Air permeability class AE 900 EN 12152 Resistance to wind load: 2400 Pa / 3600 Pa EN 12179 Impact resistance: I5/E5 (EN 14019) Burglar resistance: RC2 (EN 1627) Seismic resistance: in accordance with (AAMA 501.4:2000) Tests in accordance with CWCT, ASTM and AAMA
