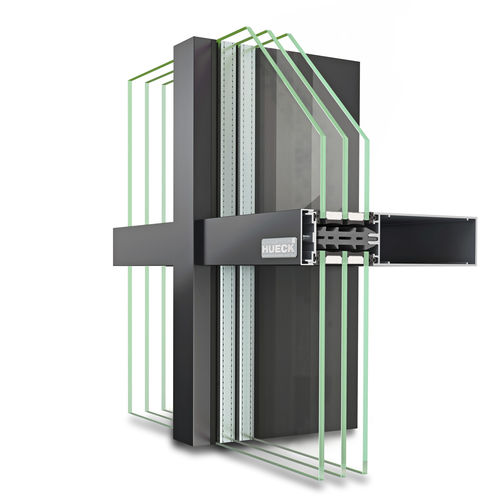

Stick system curtain wall TRIGON 50 D

aluminum and glasswith integrated insulation

Mullion / transom façade, 50 mm profile depth -Elevation widths 50 mm -Thermal insulation Uf 1,0 - 3,2 W/m²K -Burglar resistance WK1 / WK2 / WK3 Construction: Thermally insulating aluminium facade design as a mullion-transom construction for slanting, vertical or level curtain walls, with notching in transom area Glass thickness between 20 and 58 mm Various insert elements possible Elevation width: Mullion/transom and cover profiles with an elevation width of 50 mm in various profile geometries Profile depth: Depending on static requirements between 32 and 204 mm Insulating zone: Insulating profiles made of glass fibre-reinforced plastic Foamed insulating profiles for increased thermal insulation Gaskets: Vulcanised shaped gasket pieces are used in the transom connection area and cover the complete joint area Optional single-piece or two-piece EPDM gaskets as external gasket Can be inserted on site without sealing material Test results: Thermal insulation: Uf= 1.0 – 3.2 W/m²K Water tightness: static RE 1200, dynamic 250 Pa / 750 Pa (EN 12154 RE 1200) Air permeability class AE (EN 12152) Resistance to wind load: permitted load 2.4 kN/m², increased load 3.6 kN/m², (EN 13116) Bullet resistance up to FB6-S Burglar resistance WK 1 / WK2 / WK3 (ENV 1627) System compenents suitable for all the series: fittings, accessories, supplementary profiles, auxiliaries, tools Drainage according to the shingle drainage method Shaped ventilation piece can be inserted at a later time Concealed openings in the pressure plate profiles of the mullions Windows, doors and skylight window with different types of opening Impact Strength: I5 / E5 (EN 14019)
