The Linear Open 70U ceiling system consists of box shaped, 70 mm wide steel or aluminium panels which are easily clipped onto the 70U carrier. The 70U system is designed for those applications that require a more robust and stronger panel.
Robust (25mm high) box shaped panels with 30mm wide, open joints that enhance the linear appearance of the ceiling, providing a directional effect to the appearance of a room.
Box shaped panels with 30mm wide, open joints that enhance the linear appearance
Panels and carriers are available as standard in 100% recyclable steel and aluminium
Steel carriers and steel panels are purpose designed for sports hall applications
Aluminium carriers combined with aluminium panels can also be used either for exterior applications or over swimming pool areas
Panels can be supplied in any length up to 6000 mm (as standard)
Easily demountable panels and fixing clips allow for full access to services and equipment in plenum
Cradle to Cradle Certified™ Bronze (Cradle to Cradle Certified™ is a certification mark licensed by the Cradle to Cradle Products Innovation Institute).

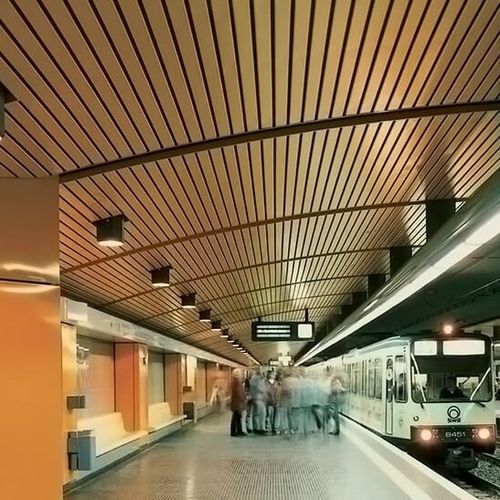

The Open 70U Ceiling System is suitable for a range of building sectors including Transport (airports, metro, bus & train stations), Leisure, and Education environments.
These robust box shaped open panels can be specified to create an emphasis on the direction of the panels. The open joints provide 30% open area in combination with the plain panels.
