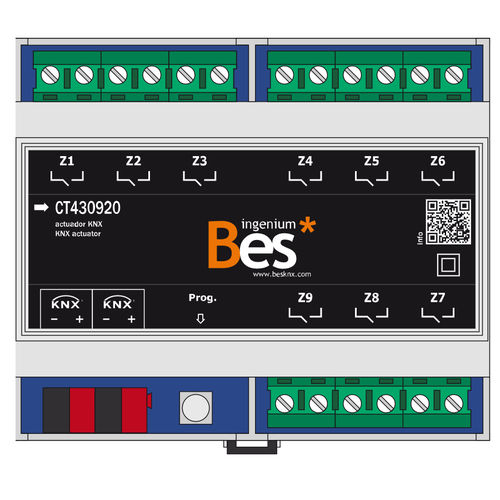

KNX blind actuator 9S-KDIN railcommercialDIN rail
Add to favorites
Compare this product
Characteristics
- Options
- KNX, DIN rail
- Market
- commercial
- Installation
- DIN rail
- Location
- indoor
Description
On/Off actuator with 9 outputs, free voltage relays with a cutting power of 16A@230V each one. Multifunction programming. Outputs of these device work simultaneously or independently in different modes (binary outputs, blinds, fan-coil, etc). Arithmetic-Logic Unit (ALU).
PARAM: Programming by ETS parameter application.
Supply: 29V DC from BUS KNX
Consumption: 9mA from KNX BUS
Outputs: 9 digital outputs
Switching capacity: 16A @ 230V AC per output
DIN rail mounted (6 modules)
