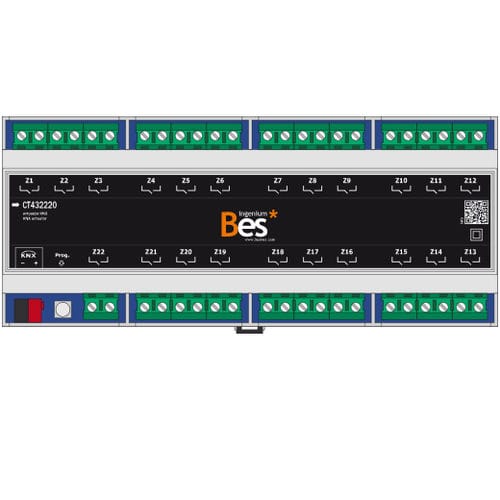

KNX switch actuator 22S-K
DIN railcommercialindoor

KNX switch actuator
KNX switch actuator
KNX switch actuator
Add to favorites
Compare this product


Characteristics

Other characteristics
KNX
Installation
DIN rail
Market
commercial
Location
indoor

Description

On/Off actuator with 22 outputs, free voltage relays with a cutting power of 16A@230V each one. Multifunction programming. Outputs work simultaneously or independently in different modes (binary outputs, blinds, fan-coil, etc). Arithmetic-Logic Unit (ALU). MANUAL: Manual control system for relay outputs Supply: 29V DC from KNX BUS Consumption: 9mA from KNX BUS Switching capacity: 16A @ 230V AC per output DIN rail mounted (12 modules)
