Drainage channel with central slot 1050

stainless steel gratefor kitchenfloor

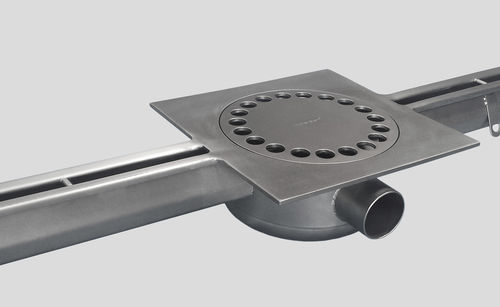

Entirely made of stainless steel AISI 304 (or 316 upon request), with a thickness of 2mm, they are ideal especially for kitchens of restaurants and food preparation areas with limited installation space in the screed coat of the floor. Standard sizes on catalogue 1300mm, 2300mm and 3300mm are available in a very short time. The standard center slot of the channel is 20mm, with a 60mm edge at sight and a channel drainage body of 65mm technically designed to be fully inspected at sight (art. Inoxsystem® C2 see catalogue at page 8, DWG. 2010). The channel is equipped with a floor drain (also called gully or sump) with a square top at sight of 300x300 mm, plate thickness of 8mm (planned for an high-traffic use, with his appropriate thickness avoids accidental plate bending), with a total lowered height of 140mm and 63mm Ø outlet pipe with filter basket for waste capturing, considered as insect and rat-proof. The floor drain can have a vertical outlet (Art. Inoxsystem® "RCV63308") or an horizontal outlet (Art. Inoxsystem® "CLR63308") which can be positioned at the center, at the head or in a point of the channel defined by the customer. Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths.
