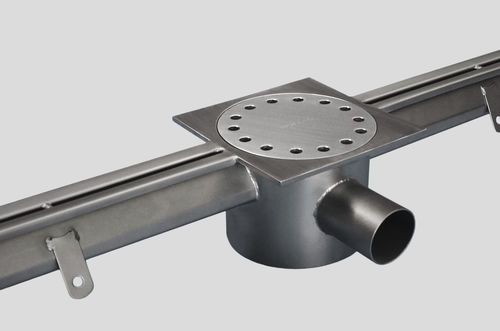

Drainage channel with central slot 1250

stainless steel gratefloor

Entirely made of stainless steel AISI 304 (or 316 on request), thickness of 1.5 mm, this line of products are ideal especially for locker rooms, swimming pools, showers, terraces and in wider terms all public departments with limited installation space in the screed coat of the floor. The center slot of the channel is standard 8mm, with a 50mm edge at sight and a channel drainage body of 65mm technically designed to be fully inspected at sight (art. Inoxsystem® C1 see catalogue at page 8, DWG. 2010). The channel is equipped with a floor drain (also called gully or sump) with a square top at sight of 200x200 mm, plate thickness of 6mm with a total lowered height of 140mm and 63mm Ø outlet pipe with filter basket for waste capturing, considered as insect and rat-proof. The floor drain can have a vertical outlet (Art. Inoxsystem® "RCV63206") or an horizontal outlet (Art. Inoxsystem® "CLR63208") and can be positioned at the center, at the head or in a point of the channel defined by the customer. Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths. We can also provide grafts for flushing of channel with diffusers ½ (art. Inoxsystem® IL).
