stainless steel drainage channel / with central slot / floor
1060

Add to MyArchiExpo favorites
Compare this product
stainless steel drainage channel / with central slot / floor stainless steel drainage channel / with central slot / floor - 1060
{{requestButtons}}

Characteristics

  • Material:

    stainless steel

  • Configuration:

    with central slot

  • Applications:

    floor

Description

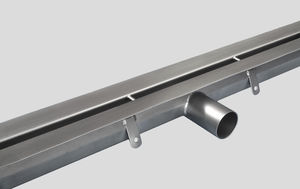

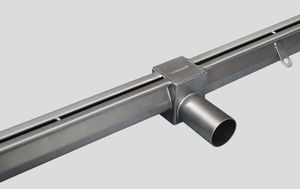

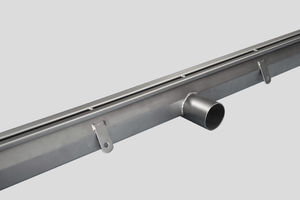

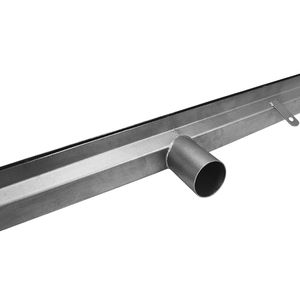

Entirely made of stainless steel AISI 304 (or 316 upon request), with a thickness of 2mm, they are ideal especially for residential buildings, production areas, wineries, dairies, slaughterhouses, fish mongers etc…The standard center slot of the channel is 20mm, with a 60mm edge at sight and a channel drainage body of 65mm technically designed to be fully inspected at sight (art. Inoxsystem® C2 see catalogue at page 8, DWG. 2010). The channel is equipped with a floor drain (also called gully or sump) with a square top at sight of 300x300 mm, plate thickness of 8mm (planned for an high-traffic use, with his appropriate thickness avoids accidental plate bending), with an overall height of 220mm and a 110mm Ø outlet pipe with filter basket for waste capturing, considered as insect and rat-proof. The floor drain can have a vertical outlet (Art. Inoxsystem® "CV110308") or an horizontal outlet (Art. Inoxsystem® "CLR110308") which can be positioned at the center, at the head or in a point of the channel defined by the customer.
Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths. We can also provide grafts for flushing of channel with diffusers ½” (art. Inoxsystem® “IL”).
