Leak-proofing paint PASSIVE PURPLE X

protectivesealingcover

Product summary

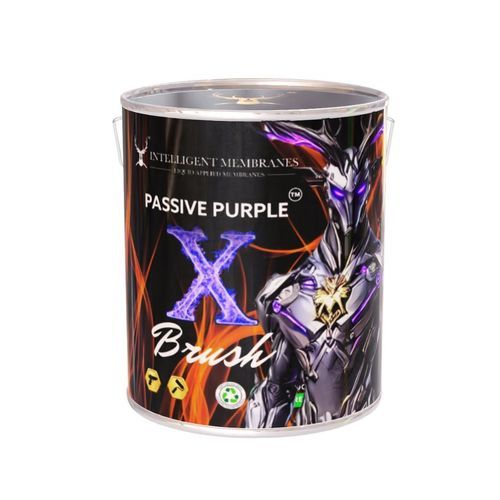

Passive Purple X is a fire class B airtight paint and vapour control membrane supplied in a 5kg brush-applied tub. It provides certified reaction-to-fire performance while creating a watertight, breathable and airtight membrane for external and internal applications.

Key features

• Raintight but vapour breathable
• Airtight
• UV resistant
• Anti fungus
• Self-cleaning / reduced dirt pickup caused by UV netting
• Crack-bridging
• Carbonation block (for concrete); realkalising (concrete)
• Protection against salts (for roads) (concrete structures)
• Can be used as a protective coating on concrete as anti-carbonation / cement coating
• Coverage: 1 kg will cover 1 m² (approx.)

Tested & Certified

• Reaction to fire: Euroclass B-s1,d0 (EN 13501-1, on A1 substrates ≥653 kg/m³) and ASTM E84 Class A (Flame Spread 0 / Smoke 15)
• Watertight: Class W1 (EN 13859-2) & water permeability Class W3 (EN 1062-3)
• Breathable / vapour-open — Sd ≈ 0.6 m (EN ISO 12572)
• Crack-bridging: A3 (23°C) / A4 (-10°C) (EN 1062-7)
• CO₂ / carbonation barrier Class C1 (EN 1062-6)
• Kiwa BDA Agrément (BAW-21-214-P-A-UK)
• Passive House component (phB)
• US ICC-ES AC212

Why choose Passive Purple X?

• Cost effective — using an airless spray device one person can cover large facade areas quickly
• VOC free — water-based, no VOCs in the airtight paints
• Easy application — can be applied by airless spray, roller or brush
• External use — provides a super tough watertight vapour control membrane for weatherproofing and UV resistance
• Fire rated — Class B
• Breathable — allows vapour release while ensuring airtightness

Uses and substrates
Can adhere to insulation panels, concrete and brick walls, fibre cement boards, engineered wooden panels / OSB panels.

Directions for use

• Remove salt efflorescence, dust, loose parts and standing water from the surface
• Apply on a closed surface; if necessary fill holes and joints with a fast setting cement-based product or polyurethane foam
• Apply at substrate and ambient temperatures above 5°C
• Application on humid surfaces allowed, but remove standing water
• Do NOT add water or solvents
• Do NOT apply in full sunlight
• Do NOT apply during rain
• Apply in two layers (airless spray or roller); apply second layer after first has dried
• Clean tools with water after use

Technical & certification notes

• Usage: Internal & External
• Applied by: Brush (also suitable for spray and roller)
• Colour: Purple
• VOC: Water-based, VOC-free

Related information
Installation guides, technical data sheets, safety data sheets and independent test reports are available for Passive Purple X (brush-applied) documenting product performance, fire rating, watertightness and mould resistance.

Caractéristiques / spécifications techniques

• Model / Range: Passive Purple X
• Formulation: Water-based, VOC-free airtight paint / membrane
• Pack size: 5 kg tub (brush applied)
• Colour: Purple
• Coverage: Approximately 1 kg per m² (varies by substrate and application)
• Reaction to fire: Euroclass B‑s1,d0 (EN 13501-1) ; ASTM E84 Class A (Flame Spread 0 / Smoke 15)
• Watertight: EN 13859-2 Class W1 ; EN 1062-3 water permeability Class W3
• Vapour resistance: Sd ≈ 0.6 m (EN ISO 12572)
• Crack bridging: EN 1062-7 A3 (23°C) / A4 (-10°C)
• Carbonation / CO₂ barrier: EN 1062-6 Class C1
• Certifications / Approvals: Kiwa BDA Agrément, Passive House component (phB), US ICC-ES AC212, BBA references for related Passive Purple products
• Application: Brush, roller or airless spray; two coats recommended
