Floor access hatch TIRA series

floor-mountedfor tiled floorsrectangular

Short description
Gas-assisted infill access cover for pool technical rooms and filter chambers. INZA TIRA series, stainless steel AISI304 standard (AISI316 optional), watertight and designed to be tiled or covered with the surrounding floor. Hinged with gas struts for effortless opening. Manufacturing time: 15 days. Shipping included. Delivered with opening tools.

Watertightness & finish

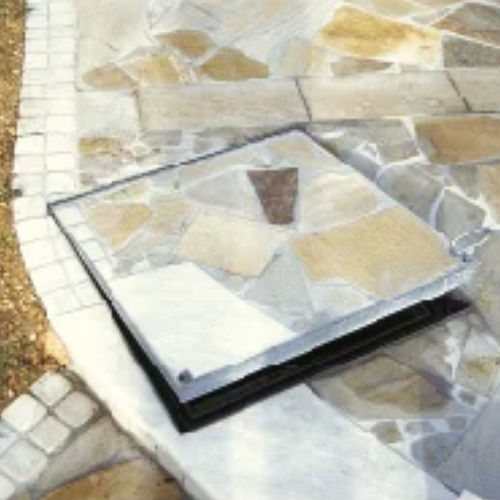

This access cover features an EPDM gasket and corner locking with two stainless-steel screws to ensure watertightness and prevent odour escape. The cover base accepts ceramic tiles, wood or other flooring with a useful infill depth of 25 mm for seamless surface integration.

Gas-assisted opening

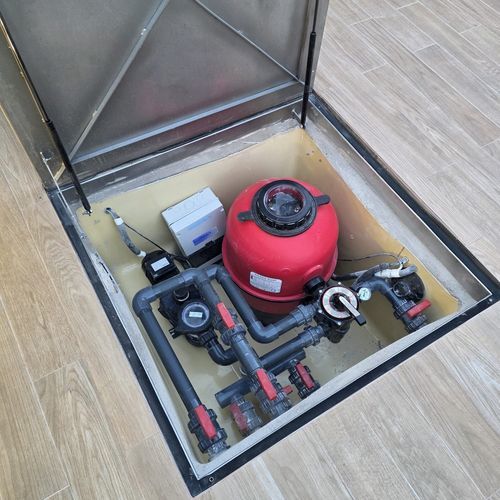

Hinged design with pressure gas struts balances the cover to allow smooth opening even when covered with heavy materials. Suited to chambers requiring frequent access (e.g., pool filter systems). Each cover is supplied with the necessary opening tools.

Safety & customization

• Optional mesh safety tray to prevent accidental falls into the chamber when the cover is open.
• Available in square or rectangular formats; custom sizes manufactured on request.

Materials & load resistance
Manufactured in AISI304 (standard) or AISI316 (recommended for aggressive environments). Standard design for pedestrian traffic (load class A15). Options for vehicular use: B125 or C250 on request.

Included / Accessories

• Gas struts (pressure-assisted opening)
• Two-screw stainless-steel corner locking system
• EPDM gasket for watertight seal
• Opening tools included
• Optional: mesh safety tray

Additional information (product attributes)
Material: Stainless Steel AISI304 (standard), Stainless Steel AISI316 (option)

Standard internal dimensions: 1000×1000 mm, 1200×1200 mm, 800×800 mm, 600×600 mm

Characteristics / technical specifications

• Standard infill depth: 25 mm
• Gasket: EPDM
• Locking: 2 stainless-steel screws (corner locking)
• Hinge: hinged design with gas struts (gas-assisted opening)
• Traffic class (standard): A15 (pedestrian). Options: B125 or C250 for vehicular traffic
• Materials available: AISI304 (standard), AISI316 (option for aggressive environments)
• Manufacturing time: 15 days
• Shipping: included
• Accessories supplied: opening tools
• Optional safety accessory: mesh safety tray (prevents accidental falls)
• Available standard internal sizes and example variants (prices excl. taxes):

  • Internal 600×600 mm (AISI304) — External 673×673 mm — Load class A15 — Price: €980.00 — SKU: IF8
  • Internal 800×800 mm (AISI304) — External 873×873 mm — Load class A15 — Price: €1,050.00 — SKU: IF7
  • Internal 1000×1000 mm (AISI304) — External 1073×1073 mm — Load class A15 — Price: €1,176.00 — SKU: IF5
  • Internal 1200×1200 mm (AISI304) — External 1273×1273 mm — Load class A15 — Price: €1,350.00 — SKU: IF6
  • Internal 600×600 mm (AISI316) — External 673×673 mm — Load class A15 — Price: €1,120.00 — SKU: IF18
  • Internal 800×800 mm (AISI316) — External 873×873 mm — Load class A15 — Price: €1,250.00 — SKU: IF17
  • Internal 1000×1000 mm (AISI316) — External 1073×1073 mm — Load class A15 — Price: €1,350.00 — SKU: IF15
  • Internal 1200×1200 mm (AISI316) — External 1273×1273 mm — Load class A15 — Price: €1,495.00 — SKU: IF16
