Hot water convector Clima Canal 13 B27

0...500 wgalvanised steelstainless steel

Overview
Silent and unobtrusive floor convector completely integrated into the floor. Provides heating and (light / deep) cooling; available for heating, non-condensing and condensing cooling. Compact dimensions and shallow installation depth.

Key features

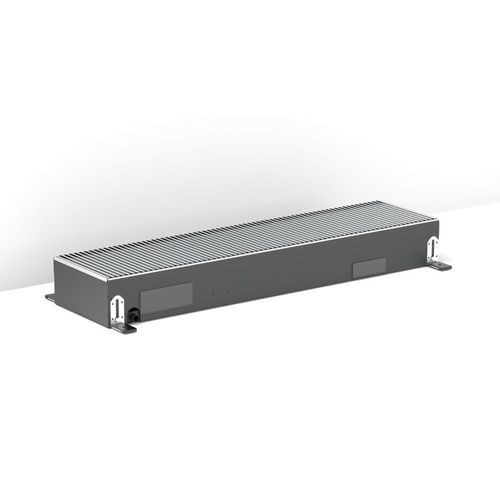

• 4-pipe dynamic floor convector, model Clima Canal 13 B27
• Silent operation for maximum climatic comfort
• Suitable for heating, non‑condensing (light) and condensing (deep) cooling
• Compact dimensions: 13 cm height and 27 cm installation depth
• Height-adjustable base with fine floor alignment capability
• Available with anodised aluminium or wooden grilles

Standard delivery

• Casing in Sendzimir-galvanised steel sheet (RAL7024) with height adjustment and stainless steel grille support
• Grille(s): anodised aluminium or wood
• Dynamic heat exchanger (4-pipe)
• Thermal activator(s) (tangential mini activator) 24 VDC
• Stainless steel flexible connections 1/2", 15 cm long
• Provided for continuous installation
• Height-adjustable base 0 – 4.5 cm
• Fine adjustment to max. +0.8 cm (not included with certain variants)
• Cover plates

Composition / Accessories

• Protection panel for mounting and site protection
• Valves cover plate
• Stainless steel flexible connections 1/2", 15 cm long
• Electrical connection on the inside
• Hydronic & electrical connection normally left-hand side
• Optional nozzle(s) for ventilation duct
• Condensate tray for drainage (ø 2 cm) for condensate water
• Fans (where applicable)
• Aluminium or wooden grilles in a variety of colours and materials

Dimensions (key)
Standard height: 13 cm; standard width (installation depth): 27 cm; available lengths include: 80 cm, 110 cm, 160 cm, 180 cm (see full dimensions diagram in product documentation).

Outputs (excerpt from product outputs table)
Columns: Height [cm] | Length [cm] | Width [cm] | Control voltage [V] | Heating 75/65/20 [W] | Heating 55/45/20 [W] | Heating 45/35/20 [W] | Heating 35/30/20 [W] | Light cooling 16/18/27 (50% R.V.) [W] | Deep cooling Total 7/12/27 (50% R.V.) [W] | Deep cooling Sensible 7/12/27 (50% R.V.) [W] | Sound pressure dB(A) | Electric power consumption [W] | Air flow [m3/h]
13 | 80 | 27 | 2 | 362 | 216 | 142 | 90 | 41 | 111 | 78 | 16 | 1 | 38
13 | 80 | 27 | 4 | 590 | 352 | 232 | 146 | 84 | 209 | 150 | 19 | 1.6 | 55
13 | 80 | 27 | 6 | 786 | 469 | 309 | 195 | 127 | 297 | 215 | 27.1 | 2.9 | 85
13 | 80 | 27 | 8 | 962 | 574 | 378 | 238 | 170 | 393 | 288 | 35 | 5 | 117
13 | 80 | 27 | 10 | 1126 | 672 | 442 | 279 | 214 | 498 | 369 | 27.1 | 2.9 | 85

Notes
- The product offers multiple control and connection options; refer to the full outputs table and selection tool for exact performance for each length / control configuration.
- Standard thermal activators are 24 VDC; other control voltages/options are available depending on configuration.

Caractéristiques / spécifications techniques

• Type: Floor convector, Clima Canal 13 B27 (4-pipe)
• Height: 13 cm
• Standard width (installation depth): 27 cm
• Available lengths: 80, 110, 160, 180 cm (and variants)
• Heat exchanger: dynamic 4-pipe
• Cooling: light cooling (non-condensing) and deep cooling (condensing) options
• Thermal activator: tangential mini activator(s), 24 VDC (standard)
• Connections: stainless steel flexible connections 1/2", 15 cm long (standard)
• Height-adjustable base: 0 – 4.5 cm; fine adjustment up to +0.8 cm
• Condensate management: optional condensate tray with ø 2 cm drainage
• Sound level: from approx. 16 dB(A) (depending on config) — see outputs table for details
• Typical electric power consumption (fans/actuators): from ~1 W upward depending on configuration
