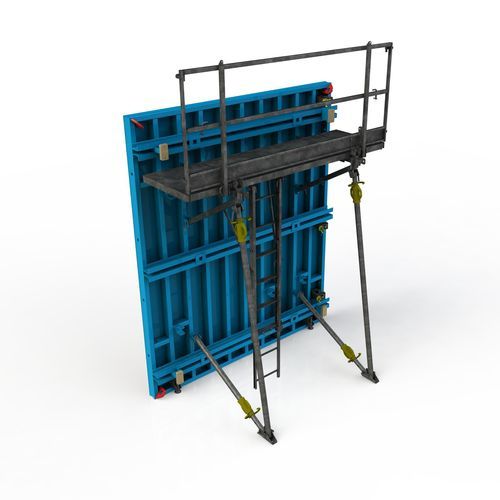

Frame formwork BMP / BM+

modularsteelwall

Description

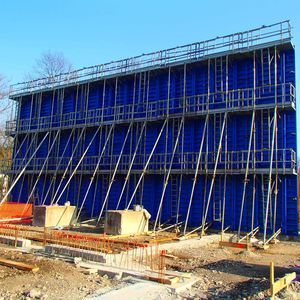

These straight steel-faced panel formworks are designed for cast-in-place concrete walls in residential and industrial buildings, including structures complying with earthquake-resistant standards. They provide secure working conditions and improved onsite productivity.

Construction and performance

• Molding face: steel plate, 4 mm thickness
• Allowable pressure: 5 tons/m² when using Ø17 mm tightening rods
• Juxtaposition assembly: integrated crowbars
• Superimposing: integrable crowbars

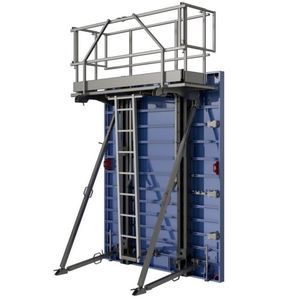

• 3.00 m panels equipped with foldable integrated galvanized safety platform

Dimensions

• Widths: 1.25 m, 1.50 m and 2.50 m
• Height: 3.00 m

Technical specifications

• Molding face material: steel, 4 mm thickness
• Allowable pressure: 5 tons/m²
• Tightening rod diameter: Ø17 mm
• Assembly methods: integrated crowbars for juxtaposition; integrable crowbars for superimposing
• Safety platform: foldable integrated galvanized platform on 3.00 m panels
• Available panel widths: 1.25 m, 1.50 m, 2.50 m
• Panel height: 3.00 m
