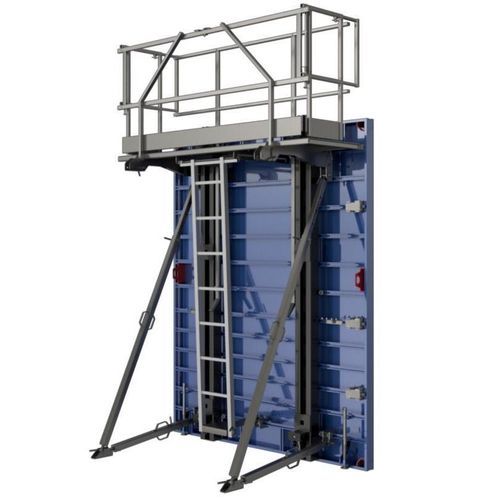

Frame formwork META

modularwoodensteel

Description
These straight modular wall formwork panels are designed for casting raw concrete walls in residential and industrial buildings, compliant with earthquake-resistant standards. Panels are available with a steel forming face (5 mm) or a multiply plywood face (15 mm). Designed for safe on-site operation and high productivity.

Molding face
The forming face is available in 5 mm steel or 15 mm multiply plywood.

Pressure rating
Acceptable working pressure: 6 or 7 Tons/m².

Assembly and safety platforms
Panels join by integrated connectors for juxtaposition and by integrable connectors for stacking. 3.00 m formworks include a foldable integrated galvanized safety platform. 1.50 m high panels can be fitted with an optional galvanized safety platform.

Dimensions and weight
Available widths: 0.50, 1.00, 1.50 and 2.00 m; available heights: 0.50, 1.00, 1.50, 2.75 and 3.00 m. Approximate weight: 145 kg/m².

Caractéristiques / spécifications techniques

• Molding face: steel (5 mm) or multiply wood (15 mm)
• Acceptable pressure: 6 or 7 Tons/m²
• Assembly: juxtaposition by integrated connectors; superimposing by integrable connectors
• Safety platforms: foldable integrated galvanized platform on 3 m formworks; optional galvanized platform for 1.50 m panels
• Available widths: 0.50 m, 1.00 m, 1.50 m, 2.00 m
• Available heights: 0.50 m, 1.00 m, 1.50 m, 2.75 m, 3.00 m
• Approximate weight: 145 kg/m²
• Application: raw concrete walls for residential and industrial buildings; compliant with earthquake-resistant standards
