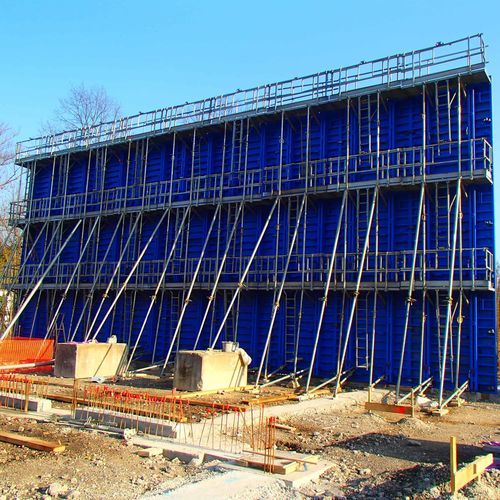

Frame formwork META10

modularsteelwall

Description
These straight formwork panels feature a steel molding face and are intended for raw concrete walls of large or high structures. They are suitable for residential and industrial buildings, including earthquake-resistant designs. The system supports safe working conditions and high onsite productivity when used for tall wall applications.

Construction and materials
The molding face is manufactured from steel with a thickness of 5 mm. Components are designed for heavy-duty use and repeatable assembly on large wall projects.

Structural resistance
Acceptable pressure rating: 10 or 12 Tons/m.

Assembly and safety
Juxtaposition is achieved with integrated crowbars; superimposing uses integrable crowbars. The 3.00 m and 1.50 m panels include foldable integrated galvanized safety platforms for worker access and fall protection.

Dimensions

• Widths available: 0.60 m, 0.90 m, 1.20 m and 2.40 m
• Heights available: 0.50 m, 1.00 m, 1.50 m and 3.00 m

Additional information
Approximate weight of the panels: 170 kg/m².

Technical specifications

• Molding face material: steel, 5 mm thickness
• Acceptable pressure: 10 or 12 Tons/m
• Assembly: integrated crowbars for juxtaposition and superimposing
• Safety platforms: foldable integrated galvanized platforms on 3.00 m and 1.50 m panels
• Available widths: 0.60 m, 0.90 m, 1.20 m, 2.40 m
• Available heights: 0.50 m, 1.00 m, 1.50 m, 3.00 m
• Approx. weight: 170 kg/m²
• Application: large/high raw concrete walls for residential and industrial buildings, earthquake-resistant design
