Flat roofing JI 18-076-988sheet steelmetal lookribbed
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Material
- sheet steel
- Appearance
- metal look
- Other characteristics
- ribbed, profiled
Description

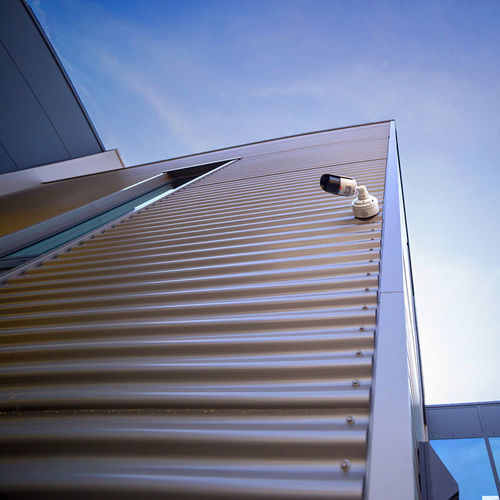

JI 18-076-988 is a corrugated sheet for metal roofing. JI 18-076-988 is coated on the A side with the color specified in the order.
Dimensions
Length:Min. 500.0mm/ max. 8000.0mm
Width:Min. 912.0mm/ max. 988.0mm
Thickness & weight
0.5 mm:4.85 kg/m²
0.6 mm:5.82 kg/m²
0.7 mm:6.79 kg/m²
Characteristics
Material:Steel S280 GD
Reference standards
Galvanized steel:EN 10346:2015 - tolerances according to EN 10143:2006
Tolerance:EN 508-1:2021 (Geometry)
Calculations:EN 1993-1-3:2006
Dimensions
Length:Min. 500.0mm/ max. 8000.0mm
Width:Min. 912.0mm/ max. 988.0mm
Thickness & weight
0.5 mm:4.85 kg/m²
0.6 mm:5.82 kg/m²
0.7 mm:6.79 kg/m²
Characteristics
Material:Steel S280 GD
Reference standards
Galvanized steel:EN 10346:2015 - tolerances according to EN 10143:2006
Tolerance:EN 508-1:2021 (Geometry)
Calculations:EN 1993-1-3:2006
