Steel roofing JI 46-150-900

sheet metalribbed

Product overview

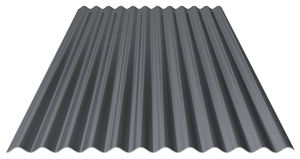

The JI 46-150-900 corrugated sinusoidal metal roofing sheet is a steel roof and façade profile providing high mechanical stability and load-bearing capacity. Suitable for industrial, agricultural, residential and commercial buildings, it offers multiple lengths, coatings and thicknesses for versatile roofing and cladding applications.

Applications

• Industrial buildings
• Agricultural buildings
• Residential buildings
• Commercial / tertiary buildings

Coatings & colours (selected options)

• Essential (25 µ): basic coil coating for external cladding and roofing
• Ultra: textured coating for improved surface hardness and handling
• Ultra-X (Ultra 75): highest durability coating for roofing and cladding; alternative to PVC-plastisol

Available sample colours (examples shown on product page)

• RAL 1015
• RAL 5008
• RAL 6011
• RAL 7012
• RAL 7016
• RAL 7035
• RAL 8012
• RAL 9002
• RAL 9006
• RAL 9007
• RAL 9010

Dimensions (representative)
Length: Min. 1500.0 mm / Max. 13500.0 mm
Width: Max. 900.0 mm

Thickness & weight (examples)

• 0.7 mm: 7.45 kg/m²
• 0.75 mm: 7.98 kg/m²
• 0.88 mm: 9.36 kg/m²

Reference standards (key)

• Galvanized steel: EN 10346:2015 (tolerances EN 10143:2006)
• Coil coating: EN 10169:2022
• Geometry tolerances: EN 508-1:2021
• Structural calculations: EN 1993-1-3:2006

Characteristics / technical specifications

• Model: JI 46-150-900
• Material: Steel S280 GD (galvanized)
• Profile: corrugated sinusoidal roof profile
• Usable width: max. 900.0 mm
• Length range: 1500.0–13500.0 mm
• Typical thicknesses: 0.7 / 0.75 / 0.88 mm
• Typical surface weight examples: 7.45–9.36 kg/m² depending on thickness
• Available coatings: Essential (25 µ), Ultra, Ultra-X (Ultra 75)
• Applications: roofing and façades for industrial, agricultural, residential and commercial buildings
• Applicable standards: EN 10346, EN 10169, EN 508-1, EN 1993-1-3
