Steel roofing sheet JI 45-333-1000

sheet steelgalvanised steelmetal look

Product overview

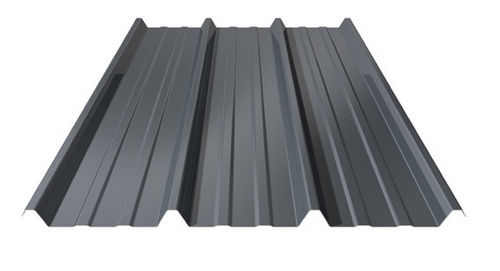

The JI 45-333-1000 metal roofing sheet is a trapezoidal steel profile designed for agricultural, industrial and commercial roofing. Its reinforced geometry increases stability and service life. Lightweight and suitable for new build and refurbishment, it allows fast and straightforward installation. Available in multiple lengths and coating options. Compatible with the JI Roof 1000 panel for end-lapping.

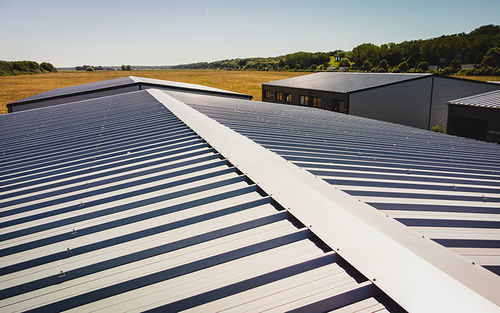

Applications

• Agricultural buildings
• Industrial buildings
• Commercial buildings
• New construction and refurbishment projects

Compatibility
Compatible with the JI Roof 1000 panel for end-lapping and integration in modular roof systems.

Dimensions
Length: Min. 1500.0 mm / Max. 13600.0 mm
Width: Max. 1000.0 mm

Thickness & weight
0.5 mm: 4.79 kg/m²
0.6 mm: 5.75 kg/m²
0.7 mm: 6.7 kg/m²

Material
Steel S280 GD

Coatings

• Essential (25 µ): Basic coating for outdoor applications (cladding, roofing and accessories, air conditioners).
• Ultra: For external uses in severe environments; suitable for profiles and sandwich panels for roofing and cladding.
• Ultra-X: Ultra 75 coating — most durable coating for roofing and cladding; alternative to PVC-plastisol paints to improve building system performance and reduce CO2 at project level.
• HPS 200 Ultra®: Designed to perform in demanding environments for both external and internal use.

Reference standards
Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Tolerance (geometry): EN 508-1:2021
Calculations: EN 1993-1-3:2006

Technical specifications

• Model: JI 45-333-1000
• Material: Steel S280 GD
• Length range: Min. 1500 mm — Max. 13600 mm
• Maximum width: 1000 mm
• Available thicknesses and weights: 0.5 mm (4.79 kg/m²), 0.6 mm (5.75 kg/m²), 0.7 mm (6.7 kg/m²)
• Coating options: Essential (25 µ), Ultra, Ultra-X (Ultra 75), HPS 200 Ultra®
• Primary uses: agricultural, industrial, commercial roofing; suitable for refurbishment
• Features: reinforced trapezoidal profile for increased stability, lightweight, quick and easy installation
• Compatible systems: JI Roof 1000 panel (end-lapping)
• Applicable standards: EN 10346:2015; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006
