Roof sandwich panel JI VULCASTEEL ROOF 37-500

for roofsfor sloping roofsgalvanized steel facing

Description

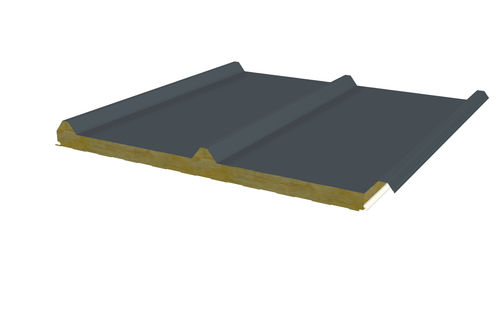

JI Vulcasteel Roof 37-500 is an insulated roof panel for pitched roofs featuring a trapezoidal outer sheet, a mineral wool core and a lightly lined inner sheet. Available in three thicknesses (60, 120 and 200 mm), it provides high acoustic comfort and effective thermal insulation. The two 500 mm flat strips between corrugations give a clean aesthetic. Its quick installation, fire classification and durable construction make it suitable for agricultural, industrial, commercial and residential projects.

Dimensions

• Length: Min. 2500.0 mm / Max. 13600.0 mm
• Width: Max. 1000.0 mm

Thickness & weight

• 60 mm: 17.59 kg/m²
• 120 mm: 23.59 kg/m²
• 200 mm: 31.58 kg/m²

Characteristics

• Material: Steel S280 GD
• Core: Mineral fibre (mineral wool)
• Fire classification: A2-s1,d0 (for all coatings except HPS 200 Ultra) according to EN 13501-1:2019

Coatings (available)

• Essential (25 µ): Basic external coating for cladding, roofing and accessories. Available colours:
  • 01015 — RAL 1015
  • 05008 — RAL 5008
  • 06005 — RAL 6005
  • 07012 — RAL 7012
  • 07016 — RAL 7016
  • 07022 — RAL 7022
  • 07035 — RAL 7035
  • 08012 — RAL 8012
  • 08019 — RAL 8019
  • 09002 — RAL 9002
  • 09005 — RAL 9005
  • 09006 — RAL 9006
  • 09007 — RAL 9007
  • 09010 — RAL 9010
• Ultra: For severe external environments; typical colours include RAL 7016, RAL 7022, RAL 7035, RAL 9002, RAL 9006, RAL 9007, RAL 9010.
• Ultra-X (Ultra 75): Most durable coating for roofing and cladding; example colour: 10026 — Goosewing Grey.

Reference standards

• Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006
• Coil coating: EN 10169:2022
• Tolerance / Geometry: EN 14509:2013
• Calculations: EN 14509:2013

Insulation

• Core: Mineral fibre
• Fire classification (panel): A2-s1,d0 according to EN 13501-1:2019 (except HPS 200 Ultra)

Insulation table
Thickness (mm) | U (W/m²K) | R (m².K/W)
60.0 | 0.68 | 1.45
120.0 | 0.35 | 2.8
200.0 | 0.22 | 4.6

Technical specifications

• Commercial name: JI Vulcasteel Roof 37-500
• Brand: Joris Ide
• Application: Insulated roof panel for pitched roofs (agricultural, industrial, commercial, residential)
• Outer sheet profile: Trapezoidal with two 500 mm flat strips
• Inner sheet: Lightly lined
• Core material: Mineral wool
• Available thicknesses: 60 mm, 120 mm, 200 mm
• Weight per thickness: 60 mm = 17.59 kg/m²; 120 mm = 23.59 kg/m²; 200 mm = 31.58 kg/m²
• Length range: 2500.0 mm — 13600.0 mm
• Maximum width: 1000.0 mm
• Thermal performance: see insulation table
• Fire performance: A2-s1,d0 (except HPS 200 Ultra)
• Steel grade: S280 GD
• Coating systems: Essential (25 µ), Ultra, Ultra-X (Ultra 75)
• Standards: EN 10346:2015; EN 10169:2022; EN 14509:2013
