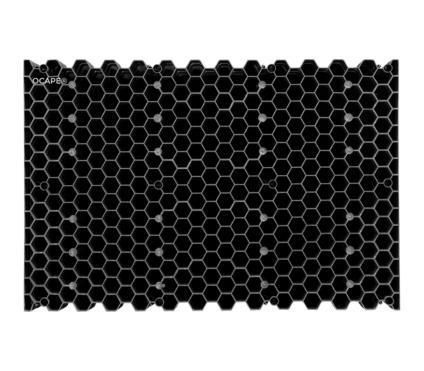

Green roof stormwater management module CAPTIO®

flat roof

Description
CAPTIO® is a honeycomb-type panel module designed for temporary water retention on waterproofed roof terraces. Manufactured from 100% recycled polypropylene, the product is offered in several heights (main range 30–240 mm and complementary versions 270–510 mm). Modules are pre-assembled and stackable thanks to interlocking features, simplifying installation on roofs.

Modules and available sizes

• Heights: 30 mm, 40 mm, 60 mm, 90 mm, 120 mm, 150 mm, 180 mm, 210 mm, 240 mm
• Complementary versions: 270 to 510 mm (see specific documentation)

Main advantages

• Honeycomb-type panel module for temporary water retention
• Made of 100% recycled polypropylene
• Ready-to-use product: pre-assembled modules
• Large contact area: reduces puncture risk to the waterproofing layer
• Perforated plates promote water and air circulation between cells
• Void ratio > 95 %
• High compressive strength: 30 T/m²
• Wide range of thicknesses to meet technical constraints
• Easily cut to shape on site
• Made in France, recycled material, 10-year warranty, compliant with DTU, ISO 9001 and ISO 14001 certified

Applications

• In lowland climates (altitude under 900 m) on masonry load-bearing elements with slope ≤ 5 % or flat
• Inaccessible or technical roof terraces
• Planted roof terraces and roof gardens
• Pedestrian-accessible roof terraces
• Light-vehicle accessible roof terraces
• Temporary water retention to reduce stormwater network saturation
• Leveling with lightweight backfill
• Ballasting with gravel in inverted insulation systems

Packaging and dimensions

• Usable dimensions CAPTIO® 60 to 240: 1200 x 797 mm
• Usable dimensions CAPTIO® 30 to 40: 1150 x 790 mm
• Footprint CAPTIO® 60 to 240: 0.9564 m²
• Footprint CAPTIO® 30 to 40: 0.9085 m²
• Packing: standard pallet 1200 x 800 mm, wrapped and shrink‑wrapped
• Color: black

Technical characteristics / specifications

• Material: 100% recycled polypropylene
• Color: black
• Available heights: 30 to 240 mm (main range); 270 to 510 mm available (see documentation)
• Void ratio: > 95 %
• Bulk density: 46 kg/m³
• Compressive strength: 30 T/m²
• Usable dimensions CAPTIO® 60–240: 1200 x 797 mm
• Usable dimensions CAPTIO® 30–40: 1150 x 790 mm
• Footprint examples: 0.9564 m² (60–240), 0.9085 m² (30–40)
• Packing: standard pallet 1200 x 800 mm, wrapped and shrink‑wrapped
• Conformities and labels: ISO 9001, ISO 14001, Made in France, compliant with DTU, 10-year warranty
