Stabilization system geocell PROCAP®

three-dimensional

Overview

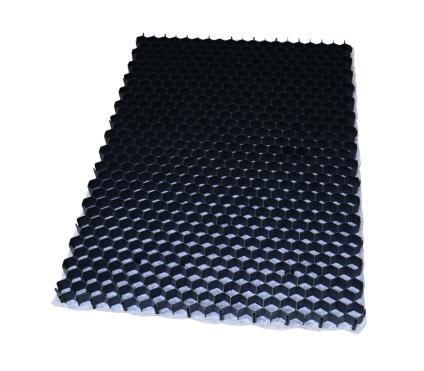

Honeycomb infill panel, 40 mm high, with geotextile bonded to the cells and an integrated system to assemble panels. Ensures gravel stability on flat roofs and protects waterproofing against climatic constraints.

Main features

• Geotextile bonded to the cells thanks to an exclusive welding process during injection.
• Integrated assembly system for secure connection between panels.
• Can replace concrete pavers over a 2 m wide perimeter on inaccessible flat roofs.
• Compliant with the DTU (DTU reference available).
• 10-year warranty.
• Manufactured from recycled material, ISO 14001 and ISO 9001 certified, made in France.

Advantages

• Keeps gravel in place.
• Easy handling: lightweight product.
• Fast and easy installation.
• Cuttable for on-site adjustment.
• Product made from 100% recycled material.

Installation & Application

• Installation must comply with the recommendations of DTU 43.1.
• Fill cells flush with gravel.
• Recommended gravel size – grain size: 8/16.
• Gravel stabilization for inaccessible flat roofs of buildings:
  - over 28 m height in zone 1 all sites or zone 2 normal site;
  - over 20 m height in zone 2 exposed site or zone 3 normal site;
  - any height in zone 3 exposed site or zone 4 all sites.

Available documentation

• Technical datasheet (PDF - 2 MB).
• Specification sheet (PDF - 198 KB).

Technical characteristics / specifications

• Material: 100% recycled polypropylene.
• Color: Black.
• Overall dimensions: 1 166 mm x 800 mm x 40 mm.
• Usable dimensions: 1 150 mm x 790 mm x 40 mm.
• Usable surface: 0.9085 m2.
• Cell structure: Hexagonal (honeycomb).
• Cell diameter: 42 mm.
• Membrane: Geotextile 60 g/m² - bonded geotextile.
• Aggregate volume / weight per m²: 37.5 litres - 46 kg +/- 2 kg.
• Packing: 60 pcs per pallet (1 pallet = 54.51 m2 usable surface).
