The Kalzip DuoPlus E System maintains all the qualities and benefits of a standard Kalzip standing seam roofing system, this hybrid system combines high density thermal insulation with compressible glass mineral fibre insulation.
Reduced thermal bridge
High thermal performance characteristics
Variable thermal insulation thicknesses up to 345mm
Use of all E-clip types and heights
Excellent sound insulation values up to R‘w = 56 dB (A), depending on roof structure
Functional and integrated system components
Variable fixing system
Efficient and reduced installation times due to the integrated system components
Suitable for substructures made from steel trapezoidal profiles, or concrete and timber decks

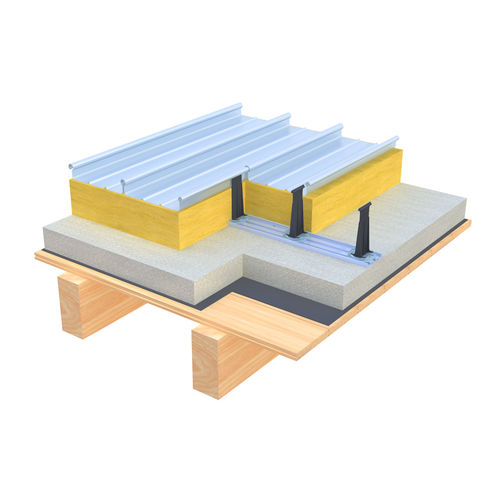

The design principle of the Kalzip DuoPlus E and Kalzip Duo E roof structures consists of the thermal separation of the outer roofing and the inner support shell. The common constructions are possible as a support shell, on which a suitable steam barrier is applied. A layer of tread-resistant mineral wool or PIR/PUR insulation panels in thicknesses of 100 or 140 mm is used as a continuous thermal separation.
On this thermal insulation, the specially developed rotary clip board E is fixed into the steel trapezoidal profile under shell or wooden substructure by means of approved fasteners. This rotary clip has the task of dissipating the external load from the clip to the thermal insulation and the underlying substructure.
