Metal roofing panel ALUPLUS SOLAR

curvedprofiledmetal look

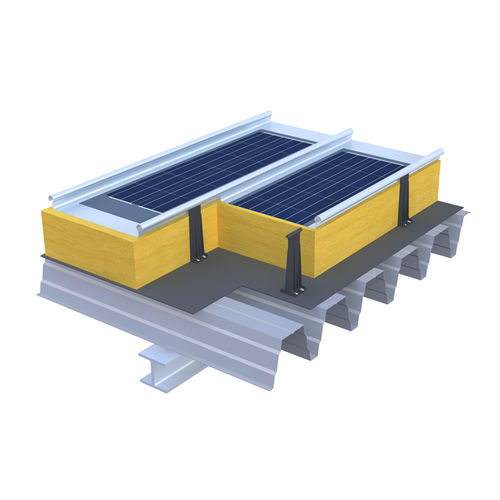

Aesthetic solar architecture With Kalzip AluPlusSolar a wide range of roof shapes can be achieved. Barrel duo or monopitch roofs can be designed as energy roofs just as easily as individually curved shapes. Kalzip AluPlusSolar can also be used for the entire building envelope and facade surfaces. Kalzip offers architects planning possibilities for designing solar living spaces in an environmentally conscious manner – economically, sustainably and aesthetically. We are working with different partners depending on the region in which the project is located. AluPlusSolar Roof design: 1. PV laminate, 2. Kalzip profiled sheet, 3. Kalzip composite E Clip, 4. Insulation (compressible) Planning notes Minimum radius in the range of the profile board occupied with modules: convex > 10 m, concave: 10 m Roof inclination: from 1.5° Application in complete building envelope or facade after consultation with application technology Design (electricand fastening) according to Kalzip SolarSystems assembly guidelines Aesthetic solar architecture AluPlusSolar Benefits & Features: Aesthetic, roof-integrated photovoltaics without additional fasteners High safety and performance, IEC-certified glassless, semi-flexible and ultra-light module Optimum use of solar energy even in weaker light conditions Economical thanks to high performance guarantee available Dirt-repellent and glare-free surface – thus minimal maintenance effort Suitable as cold and warm roof version Statically pleasing
