Thermal insulation Insotherm CYMA

polyurethanepanelexterior

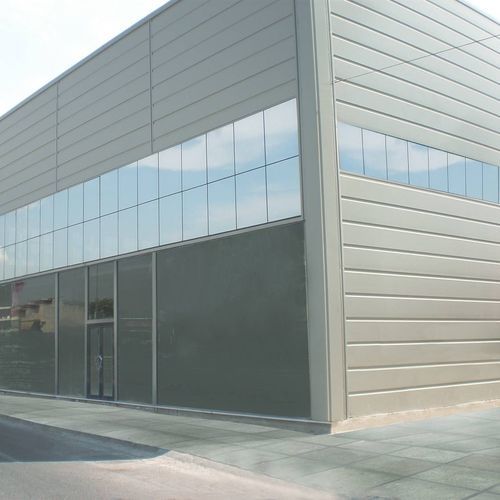

Thermal insulating polyurethane panels for side-wall cladding The polyurethane side panels (Insotherm CYMA) Kamaridis GlobalWire Group are complex, self-supporting structural elements, designed to cover the side walls of buildings. Thermal insulating Insotherm CYMA panels of Kamaridis GlobalWire Group are new innovative wall panels for special architectural applications, especially designed for sidewall cladding which can be installed in vertical or horizontal position. Insotherm CYMA panels (PUR/PIR) consist of two formed metal sheets and insulation of self-extinguishing polyurethane resin. The standardized metal sheets of the CYMA panels are slightly formed from pre-painted galvanized steel in 0.30mm to 0.70mm-thick sheets with corrugations 50mm-wide and 1.5mm-deep at distances of 50mm. The Insotherm CYMA panels are supported on the building shell via concealed fixing. Their thickness is standardized to 50mm. The foam is odorless, prevents the formation of mold and fungus, remains chemically neutral and the humidity does not change its mechanical capacities. Sensitive to the texture of the excessive sunlight and in contact with water only at the exposed surface as well. Foam Expansion Pentane is used in foam expansion which is friendly to the atmosphere and to the environment in general as it is chlorofluorocarbons free (CFC & HCFC Free.)
