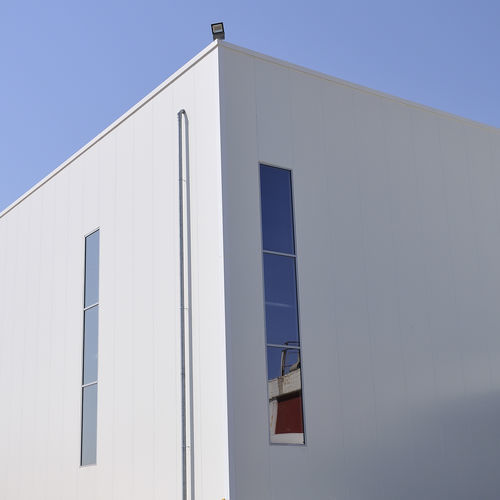

Panel cladding Insotherm WPU

sheet steelgalvanised steelpolyurethane

The insulating Insotherm WPU panels of Kamaridis GlobalWire Group are complex, self-supporting structural elements, especially designed for sidewall cladding, construction of internal partitions and suspended ceilings. The Insotherm WPU (PUR/PIR) panels consist of two formed metal sheets and insulation of self-extinguishing polyurethane resin. The standardized metal sheets of the WPU panels are slightly formed from pre-painted galvanized steel in 0.30mm to 0.70mm-thick sheets with corrugations 50mm-wide and 1.5mm-deep at distances of 50mm. The Insotherm WPU (PUR/PIR) panels are supported on the building shell via side-to-side fixing. Natural Characteristics The foam is odorless, prevents the formation of mold and fungus, remains chemically neutral and the humidity does not change its mechanical capacities. Sensitive to the texture of the excessive sunlight and in contact with water only at the exposed surface as well. Foam Expansion Pentane is used in foam expansion which is friendly to the atmosphere and to the environment in general as it is chlorofluorocarbons free (CFC & HCFC Free.) Specifications Of PVC Coating In most storage and food processing facilities, the use of PVC covering panels is required. PVC is available in two colors (RAL9002 & RAL9010) and in 120mic thickness. Both colors are certified and suitable for use in food storage and processing applications according to all European standards and regulations (78/142 / CEE, 80/766 / CEE, 82/711 / CEE, 85/572 / CEE, 90 / 128 / CEE, 92/39 / CEE).
