This Fast Folding Gate has a robust drive with a motor installed in the transmission. The guide trough is also integrated here. There is a version available that is burglar- and bullet-resistant (RC4, RC5 and FB6 certified according to EN 1627: 2011 and DIN EN 1522). The Xentry 3 opens at about 1.2 meters per second and is TÜV certified.
Application areas:
Permanent and short-term parker
Correctional facilities
High-security property protection
Courthouse
Truck parking
Real estate
Emergency room
SPEED, RELIABILITY, SECURITY AND DESIGN IN A SINGLE PRODUCT
This Speedgate has a robust top-driven unit with 1 motor and has a drive unit that incorporates a guide. The folding gate can be constructed with a burglar- and bulletproof design, opens at approx. 1.2 metre per second and is TÜV certified.

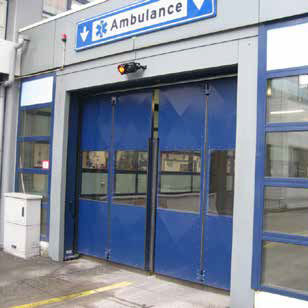

This Speedgate can be installed in commercial car-parks, high-security sites and for ambulance access.
1 motor
Mechanical locking
Robust drive system in top or bottom unit, guiding in drive unit
Special gate leaff infills, such as welded mesh, panelling, wood or glass
Burglar or bulletproof (WK,FB,BR)
Speed aprox. 1.2 m/sec
Number of cycles per day > 1000
Metalised and provided with a doublelayer powder coating
Approved by TÜV in compliance with EN 13241-1
Integrated controls
Max. width 7,500 mm
Max. heigth 5,000 mm
Max. 35 m²
TECHNICAL SPECIFICATION SPEEDGATE XENTRY 3
Columns
Topdriven: RHS profile steel columns, 200 x 200 x 6mm with service lit.
Bottomdriven: RHS profile steel columns, 250 x 250 x 6mm with service lit.
Gate panels
Panels RHS profile steel 60 x 60mm or 140 x 70mm. Patented safety hinges with integrated cable duct. Maintenance free bearings.
