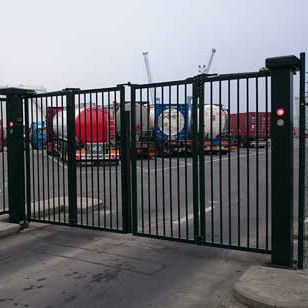

This Fast Folding Gate has a solid drive with 2 motors in the top of the columns and has no guide trough. The folding gate is SKG-approved and opens at about 1 meter per second.
Application areas:
Ports (ISPS)
Logistics and transport
Tank farm
Chemical facilities
SECURITY WITHOUT HINDRANCE
Effective security of company premises requires permanent closure. Effective access for vehicles and freight traffic demands, on the other hand, access without hindrance.
A Xentry STS is unique in providing security without hindrance, specifically for access to industrial sites.
Opens and closes rapidly (after each vehicle) - A Speedgate moves quickly enough to be opened and closed for each vehicle without hindrance. It prevents the need for additional barriers, waiting times and “riding and walking along”.
Up to 12 meters wide - A wide entrance allows large vehicles to manoeuvre without hindrance. A Xentry STS has a width of up to 12 meters, making it unique in the market.
No guide rail - A trackless Speedgate has no top or bottom guide rail. That means no restrictions regarding vehicle clearance and a continuous road surface. Ideal for heavy and high vehicles or heavily used or dirty road surfaces.
TECHNICAL SPECIFICATION SPEEDGATE XENTRY STS
PCB
TÜV certified controller in column or external control box. Controller with frequency converter 0.75 kW. power: CEE-type plug, 16 A, 230Vac.
Security
Class 3 photo cells and safety contact edges. Optional, vehicle detection loops and light curtain.
Preservation
Hot dip galvanized according to NEN-EN-ISO 1461. Option: two-layer polyester powder coating, 120 μm total, in RAL colour.
