COR-TEN® steel wall cladding panel HK-DESIGN
polyesteraluminumfor facade

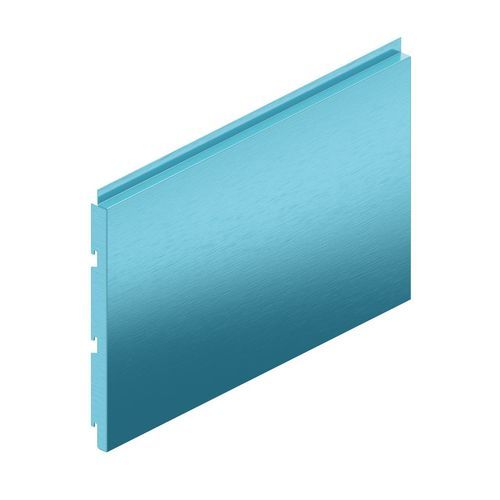

COR-TEN® steel wall cladding panel - HK-DESIGN - Kingspan Insulation - polyester / aluminum / for facade
COR-TEN® steel wall cladding panel - HK-DESIGN - Kingspan Insulation - polyester / aluminum / for facade
COR-TEN® steel wall cladding panel - HK-DESIGN - Kingspan Insulation - polyester / aluminum / for facade - image - 2
COR-TEN® steel wall cladding panel - HK-DESIGN - Kingspan Insulation - polyester / aluminum / for facade - image - 3
COR-TEN® steel wall cladding panel - HK-DESIGN - Kingspan Insulation - polyester / aluminum / for facade - image - 4
COR-TEN® steel wall cladding panel - HK-DESIGN - Kingspan Insulation - polyester / aluminum / for facade - image - 5
Add to favorites
Compare this product

Characteristics

Material
COR-TEN® steel, aluminum, polyester
Location
for facade, exterior wall, for public building, commercial, residential
Installation type
clip-on
Type of support
new support, for renovation
Style
contemporary
Finish
textured, painted, pre-painted
Color
corten color
Aspect
stone look, metal look
Options
decorative, colored, prefab
Length

Min.: 300 mm
(12 in)

Max.: 3,800 mm
(150 in)

Width

Min.: 130 mm
(5 in)

Max.: 1,350 mm
(53 in)

Weight

Min.: 19 kg
(42 lb)

Max.: 45 kg
(99 lb)

Description

Product overview
The Kingspan HK-Design is a secret-fix hook-on cassette façade system designed for landscape or portrait installation. Its structural concept enables fabrication of larger single cassettes than many competing systems and the cassette design allows straightforward on-site servicing. HK-Design cassettes can be installed on QuadCore Karrier Panel or K-Roc Karrier Panel substructures.

Product highlights
  • Fixing method: Secret hook-on to vertical mullions; compatible with helping hand brackets/tees
  • Orientation: Landscape or portrait installation
  • Maximum single cassette size (aluminium): 3,800 mm × 1,350 mm
  • Minimum single cassette size (aluminium): 300 mm × 130 mm
  • Material options: Aluminium or Corten
  • Finish: Polyester powder coating (PPC) available in a wide range of colours; coatings available to imitate corten and stone

Technical specifications
  • Product type: Secret-fix hook-on cassette façade
  • Compatible substructures: QuadCore Karrier Panel; K-Roc Karrier Panel
  • Fixing detail: Vertical mullions; also compatible with helping hand brackets/tees
  • Maximum single cassette size (aluminium only): 3,800 mm × 1,350 mm
  • Minimum single cassette size (aluminium only): 300 mm × 130 mm
  • Material options: Aluminium or Corten
  • Surface finish: Polyester powder coating (PPC); speciality coatings available to mimic corten and stone
  • Serviceability: Designed for easy on-site maintenance and replacement
  • Design note: Structural design enables fabrication of larger cassettes compared with many other systems

Installation & compatibility
  • Mounting: Attached to vertical mullions on QuadCore or K-Roc Karrier panels
  • Also installable to helping hand brackets/tees where applicable
  • Suitable for new build or retrofit façades

Applications & maintenance
  • Intended for architectural cladding on commercial, institutional and residential buildings
  • Easy access design reduces downtime for repairs and replacement
  • For project-specific performance and installation guidance consult Kingspan technical datasheets and installation manuals
