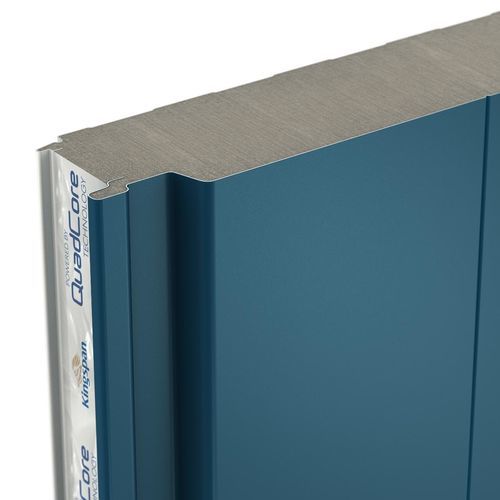

Wall sandwich panel QuadCore Evolution

Polyisocyanurate PIR corelightweightfire-retardant

Overview
QuadCore Evolution Multi-Groove Wall Panel is a secret-fix insulated wall panel featuring one or two grooves that create the visual effect of multiple cassettes while maintaining concealed fixings and high thermal efficiency.

Product Highlights

• Standard lengths: 1.2–12 m
• Core thickness: 45–140 mm
• Thermal performance: can achieve U-value of 0.13 W/m²K
• Fire performance: can achieve a high level of fire resistance

Benefits

• 25 Year Thermal Performance: QuadCore delivers thermal efficiency more than twice that of mineral fibre, enabling thinner and lighter wall constructions and long-term thermal stability.

Characteristics / Technical specifications

• Product type: Secret-fix insulated wall panel
• Design: One or two grooves to create the illusion of multiple cassettes
• Series / family: QuadCore Evolution
• Standard lengths: 1.2 m to 12 m
• Core thickness range: 45 mm to 140 mm
• Thermal performance: Can achieve U-value of 0.13 W/m²K
• Durability: Designed for 25 year thermal performance
• Fire performance: Can achieve a high level of fire resistance
• Available orientations: vertical and horizontal
