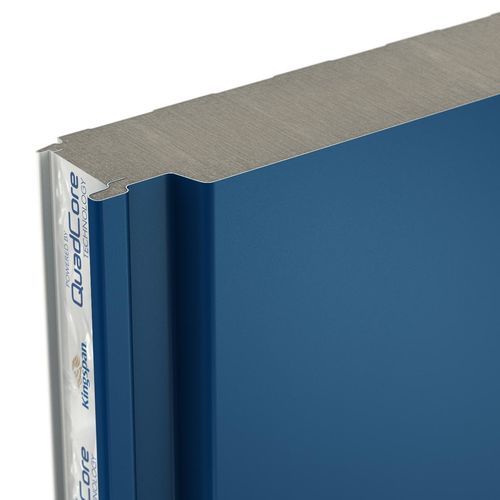

Facade cladding sandwich panel QUADCORE EVOLUTION AXIS
for facadecladdingfor wall

Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall - image - 2
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall - image - 3
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall - image - 4
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall - image - 5
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall - image - 6
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall - image - 7
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall - image - 8
Facade cladding sandwich panel - QUADCORE EVOLUTION AXIS - Kingspan Insulation - for facade / cladding / for wall - image - 9
Add to favorites
Compare this product

Characteristics

Applications
for facade, cladding, for wall, for facade cladding
Facing material
metal facing
Core material
insulating core
Technical characteristics
lightweight, thermally-insulated, fire-retardant
Width

Max.: 1,000 mm
(39 in)

Min.: 600 mm
(24 in)

Length

Max.: 12 m
(39'04" )

Min.: 1 m
(3'03" )

Weight

Max.: 13.9 kg
(30.6 lb)

Min.: 9.9 kg
(21.8 lb)

Thickness

Max.: 150 mm
(5.91 in)

Min.: 45 mm
(1.77 in)

Description

Overview
QuadCore Evolution Axis Wall Panel is a secret-fix insulated wall panel, delivering a clean, smooth, unprofiled and aesthetically appealing modern solution.

Product highlights
  • Standard lengths: 1.2 - 12 m
  • Powder coating lengths: 2.0 - 12.0 m
  • Core thickness: 45 - 150 mm
  • Can achieve a U-value (W/m²K) of 0.12
  • Can achieve a high level of fire resistance
  • Available in a wide range of powder coating colour options


Benefits
25 Year Thermal Performance — QuadCore delivers high thermal performance and is more than twice as thermally efficient as mineral fibre, allowing thinner and lighter walls.

Technical specifications
  • Product type: Secret-fix insulated wall panel
  • Application: External wall cladding / architectural facades
  • Standard lengths: 1.2 - 12 m
  • Powder coating lengths: 2.0 - 12.0 m
  • Core thickness options: 45 mm to 150 mm
  • Thermal performance: can achieve U-value of 0.12 W/m²K
  • Fire performance: can achieve high level of fire resistance (see manufacturer's technical literature for full details)
  • Finish: smooth, unprofiled aesthetic; powder coating options available
