KIDES Extrusion
Ref: 18031ANODA

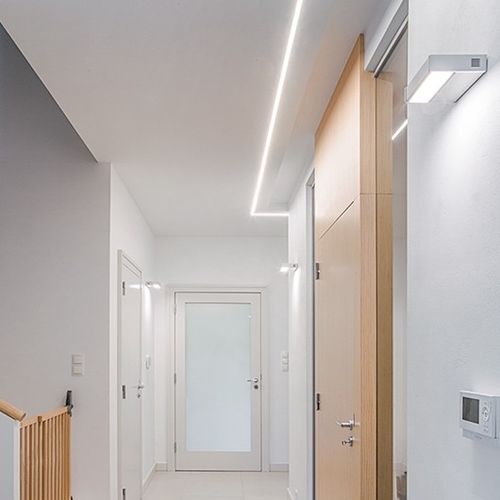

Fixtures made of KIDES series extrusions are made for indoor and outdoor applications.
Ability to create a line of light
IP54 protection class without the need for sealing compounds
Large chamber for electronic components and electrical connection
Simple design
Technical specification
Application
- for construction of splash-proof wall lamps with high light efficiency
Assembly
- using a mounting strip fastened with screws appropriately selected for the mounting surface
Additional information
- wide range of end caps
- for outdoor and indoor applications
- good heat dissipation
- IP54 ingress protection only with the KIDES cap
- space for LED strip: 1.94" / 49.5 mm
Fixtures made of KIDES series extrusions are made for indoor and outdoor applications. They are resistant to rain and snow, but are not IP68 rated (they cannot be immersed in water). They should be mounted in accordance with the guidelines contained in the manual. When used outdoors, use only KIDES series end caps. When used indoors, the above-mentioned caps can be used, or simplified caps from KIDESIN series for indoor applications.
KIDES is made of TEKIDES mounting extrusion and OKIDES extrusion. This extrusion has a compartment for the selected power supplies. In this section, HSP47 covers are applied. Following the mounting of TEKIDES extrusion on the surface and after power supply cable has been installed, click-mount OKIDES extrusion. Finally, end caps are mounted. Details of installation and a list of necessary components are contained in the manual.
