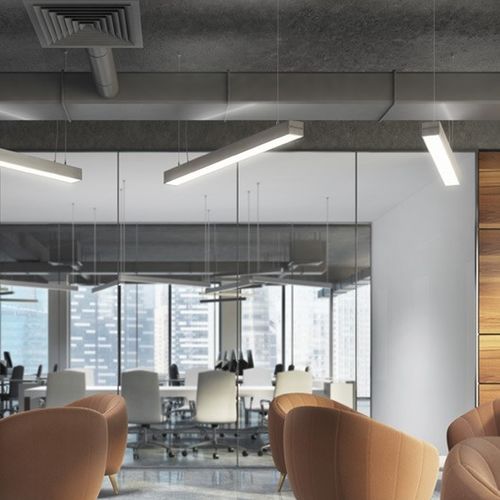

Hanging lighting profile MOD-100

ceilingLEDcommercial

MOD-100 Extrusion Ref: 18049 Service is carried out from below, enabling the construction of wall-to-wall lighting fixtures An LED lighting fixture with a low glare rating UGR below 19 (with the JUN-100 prismatic cover) can be built The fixture can accommodate control electronics A system solution for comfortable assembly and disassembly Directs light downwards and upwards Ability to build lighting fixtures with high light output Resistance to vibrations - safety Can be combined into strings and segmented lines Light output can be increased with REFLEX 16-60 reflectors LED tapes or LED current modules can be used Technical specification Application - for the construction of advanced ceiling fixtures, mounted to the surface or in difficult installation locations Assembly - comfortable and reliable assembly, - the possibility of using self-tapping screws. Additional information - the MOD-100 lighting fixture can be anodized or painted, - MOD-100 lighting fixtures can produce a strong downward light beam (6 LED tapes, 10 mm wide) or 2 LED current modules 24 mm wide), and an upward beam (1 LED tape, 10 mm wide), - MOD-100 is designed as a "core" (profile with LED tapes), which can be prepared in advance (in factory conditions), - at the installation site, it is enough to insert the prepared "core" into the body of the fixture and connect power, - use 2 locking bolts for each 1m of the fixture. With fixtures shorter than 1m, use at least 2 bolts.
