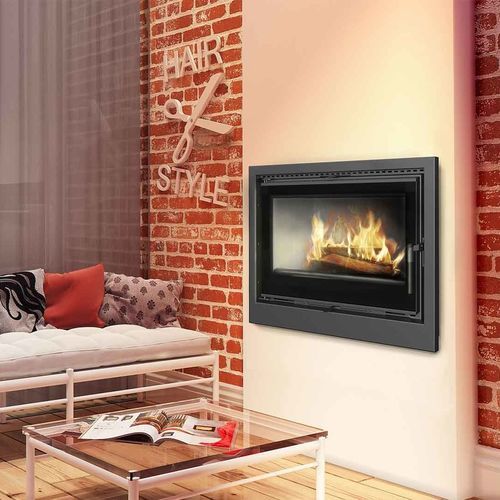

Wood-burning fireplace insert KASETA/ARKE/80

steelcontemporary

Technical Specifications Efficiency (%) 75,0 Exhaust outlet diameter (mm) 200 Complies with Ecodesign criteria Yes Fuel type recommended seasoned hardwood with moisture ≤20% CO emission (at 13% O 2 ) ≤ given in % 0,10 Flue gas temperature (℃) 320,0 Max log length (cm) 35 Emission of dust (mg/Nm 3) 34,0 Compliance with BImSchV 2 standard Yes Glazing type straight Material steel External air inlet No The liner of the combustion chamberYes Ashpan Yes Decorative printed glass Yes Wydajność wentylatorów (m3/h) 280 Rated input power (W) 38 Rated voltage (V) 230 The Arke fireplace cassette is a type of closed hearth, mounted to existing open hearths or to individual building. Its simple and elegant appearance goes hand in hand with very good thermal parameters. It has a clean glass system, which together with a separate container for ash accumulating in it, helps to keep the device clean. More effective combustion and longer temperature maintenance occurs thanks to the lining of the TERMOTEC combustion chamber, a heat-accumulating material that increases the temperature in the furnace. Burning fuel particles thanks to a deflector that extends the exhaust path. This process also increases the efficiency of combustion and guarantees better use of energy, and thus minimizes the emission of harmful substances into the atmosphere. The cassette is equipped with turbines located under the combustion chamber. The device has three stages of fan control. Options
