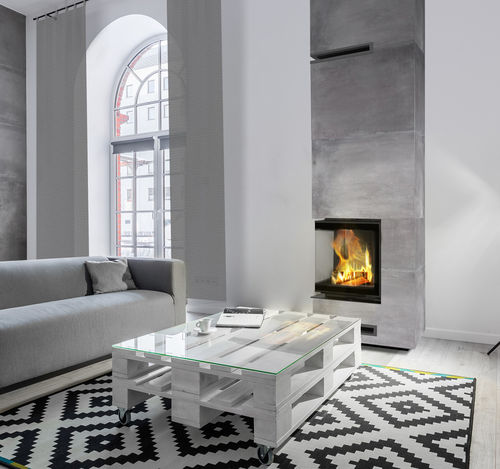

2-sided fireplace insert VNL/480/480

wood-burningsteelcontemporary

Technical Specifications Efficiency (%) 84,0 Exhaust outlet diameter (mm) 200 Complies with Ecodesign criteria Yes Designed for heat recovery unit Yes Fuel type recommended seasoned hardwood with moisture ≤20% CO emission (at 13% O 2 ) ≤ given in % 0,10 Flue gas temperature (℃) 230,0 Max log length (cm) 30 Emission of dust (mg/Nm 3) 26,0 Compliance with BImSchV 2 standard Yes Glazing type lateral Opening of the doors lift up, to the right Material steel External air inlet Yes The liner of the combustion chamber Yes Ashpan Yes Decorative printed glass Yes The modern VN insert the up-door version (guillotine - lift up system) with side glazing without a muntin combines unique aesthetics and exceptional performance properties. In addition to visual features, the device guarantees efficient space heating and ecological wood burning. Thanks to the use of modern materials and innovative technical solutions, it is characterized by a very subtle appearance. One of its many advantages is the possibility of connecting the air intake from the outside. The elegance of the insert is added by the decorative Glass type glazing. In addition, it has a parental lock that protects against uncontolled opening of the door. The VN insert attracts attention with its modern design and aesthetics of the finish. It impresses with a harmonious vision of fire, giving the interior a unique style. Heat radiates not only frontally, but also to the side.
