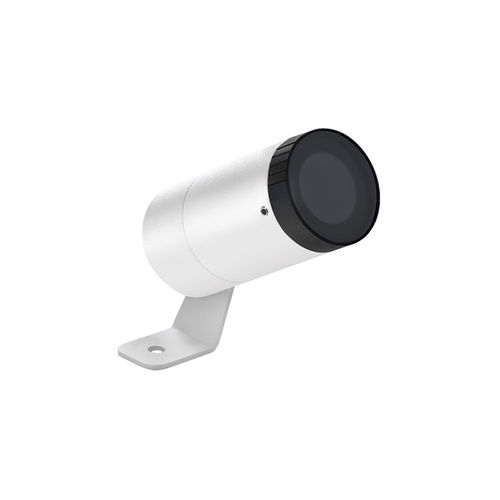

IP66 floodlight GINKO 1.0
LEDcommercialoutdoor

IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
Add to favorites
Compare this product


Characteristics

Protection class
IP66
Light source
LED
Application
commercial
Interior/exterior use
outdoor
Beam type
with zoom
Other characteristics
adjustable

Description

projector for outdoor applications; Awards: Muuuz International Awards 2019; surface mounted (ceiling, wall, ground, spike); Power consumption: 2,5W, 3,5W; Power supply: 24Vdc; Lumen output at source: 224 lm (3000K, 3.5W, CRI 80), 196 lm (3000K, 3.5W, CRI 90), 168 lm (3000K, 2.5W, CRI 80), 147 lm (3000K, 2.5W, CRI 90); Delivered lumen output: 193 lm (3000K, 3.5W, 19°, CRI 80), 164 lm (3000K, 3.5W, 19°, CRI 90), 146 lm (3000K, 2.5W, 19°, CRI 80), 124 lm (3000K, 2.5W, 19°, CRI 90); 1 power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 12°, 19°, 36°, 58°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter, sharp 38°: SHARP optical system consisting of a plano-convex lens for an extremely well-defined light beam, combined with a high-quality technical filter, 16°x36°, 36°x16°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80, >90; Body material: body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body and bracket made of AISI 316L stainless steel, made entirely on a CNC lathe and then tumble finished (stainless steel version), body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished (black-anodized version);
