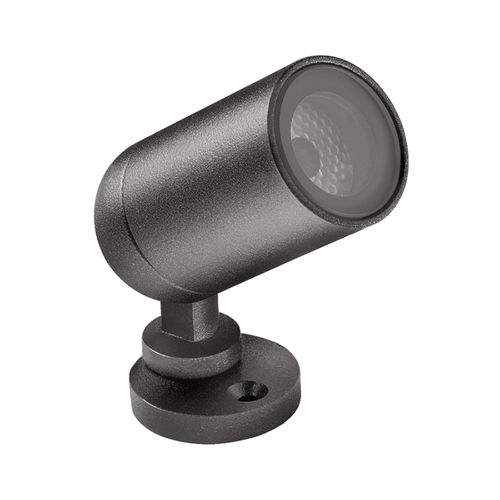

IP66 floodlight PIVOT MINI 1

LEDcommercialoutdoor

Projector for outdoor applications; surface mounted (ceiling, wall, floor); Power consumption: 2,5W, 3,5W; Power supply: 24Vdc; Lumen output at source: 150 lm (3000K, 2.5W, CRI 90), 195 lm (3000K, 2.5W, CRI 80), 200 lm (3000K, 3.5W, CRI 90), 260 lm (3000K, 3.5W, CRI 80); Delivered lumen output: 101 lm (3000K, 15°, 2.5W, CRI 90), 118 lm (3000K, 15°, 2.5W, CRI 80), 134 lm (3000K, 15°, 3.5W, CRI 90), 158 lm (3000K, 15°, 3.5W, CRI 80); 1 power LED, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 15°, 21°, 35°, sharp 30°; CRI Colour Rendering Index: 80, >90; Body material: body in anticorodal aluminium; Finishes: cor-ten, white, anthracite, copper; Screen material: screen in serigraphed, tempered, transparent extra-clear glass; power supply unit not included; Ingress protection: IP66; Impact resistance: IK06; Protection systems: IPS (Intelligent Protection System), PID (Protective Impedance Device); Appliance class: class III; Weight: 135 g; Dimensions: Ø25x49 mm; Accessories: honeycomb louvre, WBA02E Standard snoot - white, WBA02H Standard snoot - anthracite, WBA02T Standard snoot - cor-ten, WBA02U Standard snoot - copper, WBA03E Asymmetrical snoot - white, WBA03H Asymmetrical snoot - anthracite, WBA03T Asymmetrical snoot - cor-ten, WBA03U Asymmetrical snoot – copper
