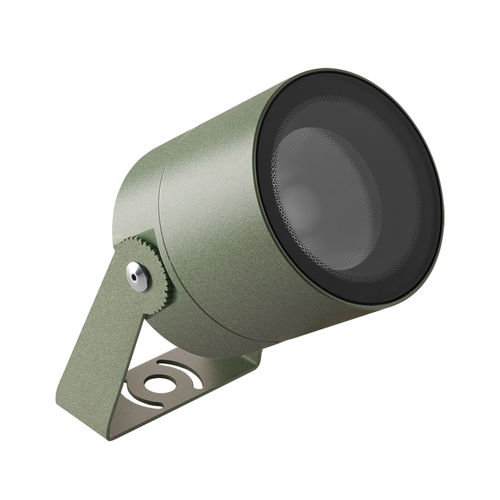

projector for outdoor applications - 25W 24Vdc - 13°x65°, 24°x69° optics adjustable through 360° using the magnet provided (patented) - ø109x110 mm
Installation - projector for outdoor applications
Power consumption - 25W
Power supply - 24Vdc
Lumen output at source - 1860 lm (3000K, CRI >90),
2302 lm (3000K, CRI 80)
Delivered lumen output - 1724 lm (3000K, 12°, CRI >90),
2133 lm (3000K, 12°, CRI 80)
Mounting - surface mounted (ceiling, wall, ground, spike)
Number and type of LED - 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C)
LED colour - 2700K, 3000K, 4000K
Optics - 12°, 26°, 34°, sharp 38°, 55°, adjustable 13°x65°, adjustable 24°x69°
CRI Colour Rendering Index - 80, >90
Body material - body in anticorodal aluminium, AISI 316L stainless steel bracket
Screen material - screen in serigraphed, tempered, transparent extra-clear glass
Finishes - white, anthracite, anodized black, cor-ten, grey, jasper green
Power supply unit - power supply unit not included
Power cables - includes 1.50/5/10/15/20 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
Ingress protection - IP66, IP69K
Impact resistance - IK08
Features - 13°x65°, 24°x69° optics adjustable through 360° using the magnet provided
Notes - version with bracket in customized length available on request
Status - Available
