Wood-burning fireplace insert INSERTO 70 LEAN

cast ironsteelstainless steel

Product overview
Ventilated wood-burning insert designed to heat residential and commercial spaces with a nominal power of 8.0 kW. Suitable for traditional fireplace installations and offered in dedicated finishes.

Product tags

• Traditional Line
• Wood

Key characteristics / Product advantages

• Direct outdoor air intake
• Post-combustion system for low emissions
• Adjustable primary and secondary air for combustion control
• Ceramic glass
• Firebox in cast iron and vermiculite
• Cast-iron door
• Painted steel structure
• 1 tangential fan standard at the back
• Manual smoke by-pass valve (for wood load ignition)
• Retractable opening handle

Available versions / Finishes

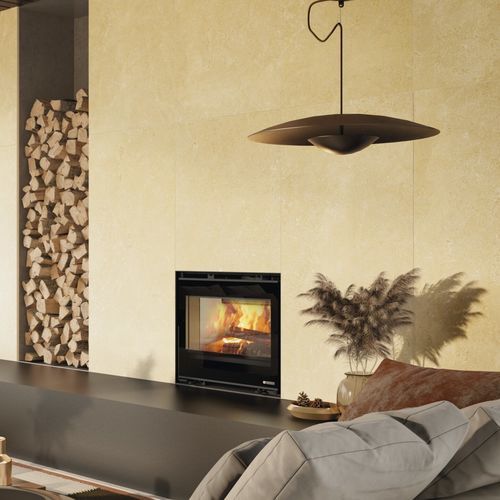

• Black finish (shown)

Standard features and accessories

• Fan speed controller (standard)
• Additional ventilation ring Ø 100 mm (standard)
• WIND AIR KIT (optional)
• Insert pedestal kit (optional)
• Anthracite black frame kit (optional)
• Stainless steel frame kit (optional)

Technical specifications

• Nominal power: 8 kW
• Efficiency: 82 - 80 %
• Seasonal efficiency: 70 %
• Heatable volume: 229 m³ (*)
• Hourly consumption: 1.1 - 2.3 kg/h
• Overall dimensions (WxHxD): 704 x 559 x 505 mm
• Hearth opening size (WxH): 526 x 255 mm
• Fireplace dimensions (WxHxD): 546 x 304 x 278 mm
• Maximum wood length: 30 cm
• Net weight: 121 kg
• Fumes outlet diameter (Ø): 150 mm (top)
• Energy Class: label provided on product page (see technical label)
• Disclaimers: (*) - Data indicative and refers to the need of 30 kcal/h x m³.
