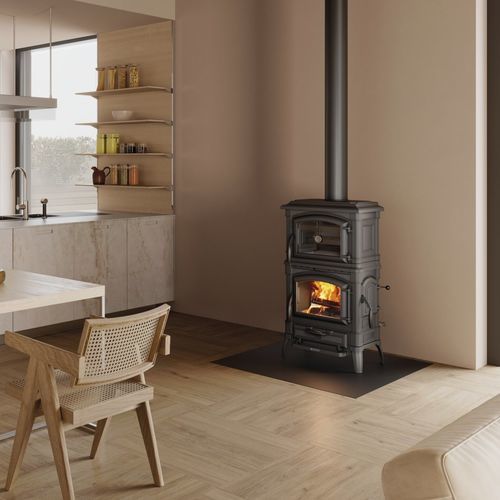

Wood heating stove ISETTA FORNO

5 kW...10 kWmulti-fuelfree-standing

Short description
Enamelled cast-iron wood stove with integrated oven. Combines heating and cooking functions with a 22.1 L porcelain-enameled steel oven lined with lava stone.

Product tags

• New
• Traditional Line
• Wood

Main features

• Nordiker hearth
• Extractable ash drawer
• Front and side loading door
• Ash-collection tank and enamelled cast-iron feet
• Cast iron body with Nordiker hearth
• 22 L porcelain-enameled steel oven
• Lava stone oven interior lining
• Adjustable primary and secondary air for combustion control
• Post-combustion system for low emissions

Values

• Nominal thermal power: 8.2 kW
• Heatable volume: 235 m³

Available versions & finish
Available finish: Anthracite Black (enamelled cast iron structure).

Accessories / Standard equipment

• Enamelled backing tray (standard / optional depending on configuration)
• Chrome plated oven grill (standard / optional depending on configuration)

Technical specifications

• Nominal power: 8.2 kW
• Efficiency: 87 - 86 %
• Seasonal efficiency: 76 %
• Heatable volume: 235 m³ (*)
• Hourly consumption: 1.3 - 2.2 kg/h
• Dimensions (WxHxD): 661 x 1162 x 452 mm
• Hearth opening size (WxH): 380 x 225 mm
• Fireplace dimensions (WxHxD): 439 x 280 x 200 mm
• Oven dimensions (WxHxD): 340 x 245 x 265 mm
• Oven capacity: 22.1 L
• Maximum wood length: 28 cm
• Net weight: 228 kg
• Fumes outlet diameter (Ø): 150 mm
• Energy class: indicated on manufacturer data (manufacturer image reference)
• Disclaimer: (*) - The data is indicative and refers to the need of 30 kcal/h x m³.
