galvanized steel planter / contemporary / for public spaces
AL AIN 2 by Pamio Design

Add to MyArchiExpo favorites
Compare this product Don’t compare this product
galvanized steel planter galvanized steel planter - AL AIN 2 by Pamio Design


  • Material:

    galvanized steel

  • Style:


  • Market:

    for public spaces

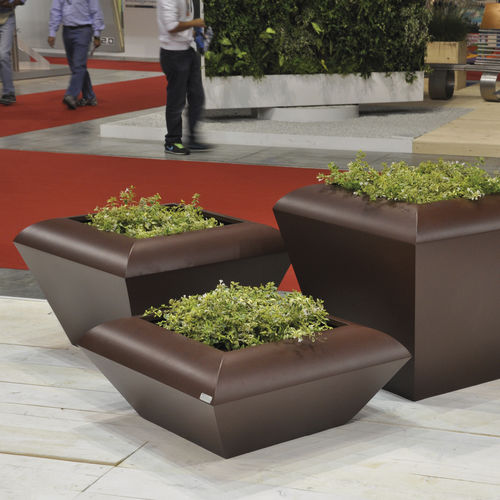

The ALAIN 800 H. 350 planter is made in steel 15/10 thickness. The structure is pyramid-shaped with a square base, and the band of the upper part is calendered with a radius of 160 mm. Inside the planter, on the main part of each side a support profile 15/10 thickness is welded. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes 15 mm diam. for the fixing to the ground through specific bolts (not provided).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and polyester-powder coating with RAL colors at choice. Such cycle is meant to guarantee the protection of the painted products in an environment of C4 corrosion class - UNI EN ISO 12944-2.

Weight of steel: 22 kg
Capacity: 145 lt
