galvanized steel planter / COR-TEN® steel / rectangular / contemporary
PELIZZARI by Fabio Pelizzari

Add to MyArchiExpo favorites
Compare this product Don’t compare this product
galvanized steel planter / COR-TEN® steel / rectangular / contemporary galvanized steel planter / COR-TEN® steel / rectangular / contemporary - PELIZZARI by Fabio Pelizzari
{{requestButtons}}

Characteristics

  • Material:

    galvanized steel, COR-TEN® steel

  • Shape:

    rectangular

  • Style:

    contemporary

  • Market:

    for public spaces

Description

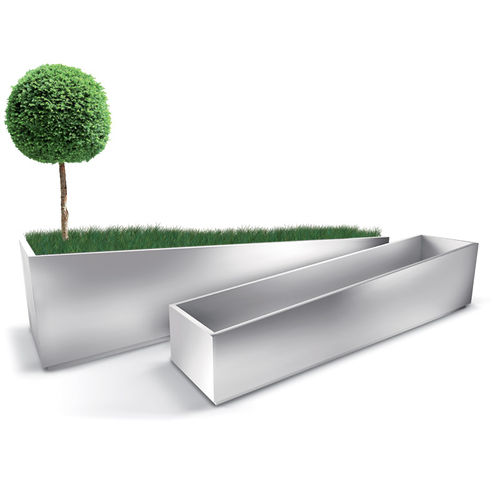

The planter PELIZZARI is made in steel 20/10 thickness. The upper part of the planter is bent on the inside, resulting in an edge of 40 mm strengthening the whole structure. The left side of the planter is 450 mm high, whereas the right side measures 300 mm. On the base of the planter there's a receding base of 50 mm each side, with H 50 mm. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. For the fixing to the ground through specific bolts (not provided) there are 4 holes 10 mm diam.

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and polyester-powder coating with RAL colors at choice. Such cycle is meant to guarantee the protection of the painted products in an environment of C4 corrosion class - UNI EN ISO 12944-2.

As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.

Capacity: 205 lt.
Weight: 35 kg
