Construction panel
plasticcompositewall

construction panel
construction panel
construction panel
construction panel
construction panel
construction panel
construction panel
Add to favorites
Compare this product


Characteristics

Function
construction
Material
plastic, composite
Applications
wall, for facade, for curtain walls
Technical characteristics
fireproof, thermal insulation, UV-resistant, weatherproof
Finish
smooth
Appearance
plain
Other characteristics
transparent
Market
commercial
Thickness

5 mm (0.2 in)

Width

2,500 mm (98 in)

Length

4,000 mm (157 in)

Description

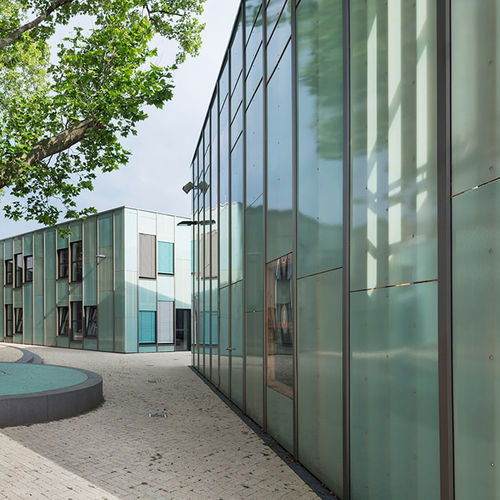

Made of fibre-reinforced composite, LAMILUX façade panels provide a visually stunning facade system in an extensive range of colours. Their modern appearance is combined with excellent lightfastness, frost resistance and reliable protection against driving rain. LAMILUX façade panels are highly suitable for rear-ventilated curtain wall facades, an increasingly popular construction element due to the increase in thermal insulation requirements. VERSIONS THE LAMILUX FACADE PANEL CAN BE ORDERED IN THE FOLLOWING VERSIONS THE LAMILUX FACADE PANEL IS AVAILABLE With a thickness of 5.0 mm With standard dimensions of 2.5 m x 4 m; other dimensions are available on request As sheets In 11 standard colours; other colours are available on request Optional: flame-retardant resin system With a gelcoat surface for maximum UV and weather resistance SPECIFIC PRODUCT ADVANTAGES Suitable for backlighting Large formats available Low surface weight Highly resistant to vandalism Individual and flexible design possibilities Long service life Easy processing and handling due to low weight SECTORS • Building sector LAMILUX FAÇADE PANEL – Artistic leeway for individualised building exteriors With panels made of fibre-reinforced plastic, ventilated project façades become an overall concept for modern, aesthetic construction – and the architecture is enriched by a variety of creative perspectives. They range from transparent, back-lit effects to the creation of high-contrast plays of colour to succinct, monochromatic and homogeneous façade surfaces.
