Galvanised steel grating DEMIALTO

for facadesfor railings

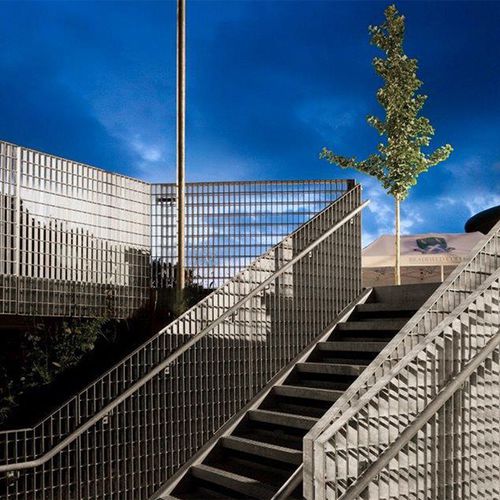

The Alto range of pressure-locked gratings is characterised by a rectangular aperture. The process of pressure-locking produces a very high quality material with perfectly formed intersections between the vertical and horizontal flat bars, resulting in the most aesthetic grating for all types of vertical applications. DemiAlto: made from flat bars of unequal depth and therefore slightly more economical for larger projects; the standard section of horizontal transverse bar is 10×2 mm. The flexibility of the manufacturing process can provide gratings to individual specifications of weight, aperture and performance. Mesh (c/c): Alto-66/DemiAlto-66 (66×132 mm); Alto-55/DemiAlto-55 (55×132 mm); Alto-44/DemiAlto-44 (44×232 mm); Alto-33/DemiAlto-33 (33×132 mm). Additional mesh sizes are available on request. A 25×2 mm bearing bar is supplied as standard but alternative sections are available: 25×3; 30×2; 30×3; 30×4; 40×2; 40×3; 40×4; 40×5 and 50×3 up to 70×5 mm. All panels are made to custom sizes and supplied framed and fully finished, hot-dip galvanized with an optional polyester powder coating in any RAL colour.
