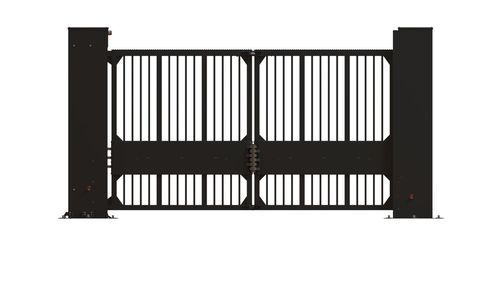

Robust gate LBAI W-GATEfoldingrightleft
Add to favorites
Compare this product
Characteristics
- Opening system
- folding
- Opening direction
- right, left
- Material
- aluminum, steel
- Configuration
- bar, with panels, robust
- Technical characteristics...
- motorized
- Options
- custom
- Color
- gray, customizable color
- Market
- industrial, for public space
- Length
Max.: 800 cm
(314.96 in)Min.: 300 cm
(118.11 in)- Height
300 cm
(118.11 in)
Description
ULTRA-ROBUST FOLDING GATE
Certified by crash test with a 7.5t truck at 80 km/h
Intelligent safety system with LBAi Detect or safety edges and photocells (optional)
Motorization and electronics integrated into the post
Fast opening speed, reduced swing area
STANDARD FEATURES
• Passage width: From 2 to 8 m
• Opening angle: 90°
• Post: Technical steel post with cataphoresis coating + paint
• Locking: Electric actuator
• Leaves: (frames and bars) in painted aluminum, polyester coating
• Light signaling: Flash lights & area lighting
• ONE-C control board including: Power supply, controller, frequency inverter, SD, RJ45 (Modbus) and torque limiter
• Intelligent safety system LBAi Detect: Image analysis by artificial intelligence (optional)
TECHNICAL SPECIFICATIONS
Power supply: 230 V
Consumption: 200 W
Gearmotor: 2 motors 0.12 kW positive brake
Impact resistance: 1,790,000 J
Maximum passage width: 8 m
Emergency operation: Locking by electric actuator on battery
Temperature control: Thermostatic anti-condensation heating
Coating: Polyester powder baked at 250°
Foundation dimensions (LxWxH): 3000 x 3000 x 550 mm
Operating temperature: -30° +55° C
IP rating: 55
Certified by crash test with a 7.5t truck at 80 km/h
Intelligent safety system with LBAi Detect or safety edges and photocells (optional)
Motorization and electronics integrated into the post
Fast opening speed, reduced swing area
STANDARD FEATURES
• Passage width: From 2 to 8 m
• Opening angle: 90°
• Post: Technical steel post with cataphoresis coating + paint
• Locking: Electric actuator
• Leaves: (frames and bars) in painted aluminum, polyester coating
• Light signaling: Flash lights & area lighting
• ONE-C control board including: Power supply, controller, frequency inverter, SD, RJ45 (Modbus) and torque limiter
• Intelligent safety system LBAi Detect: Image analysis by artificial intelligence (optional)
TECHNICAL SPECIFICATIONS
Power supply: 230 V
Consumption: 200 W
Gearmotor: 2 motors 0.12 kW positive brake
Impact resistance: 1,790,000 J
Maximum passage width: 8 m
Emergency operation: Locking by electric actuator on battery
Temperature control: Thermostatic anti-condensation heating
Coating: Polyester powder baked at 250°
Foundation dimensions (LxWxH): 3000 x 3000 x 550 mm
Operating temperature: -30° +55° C
IP rating: 55
